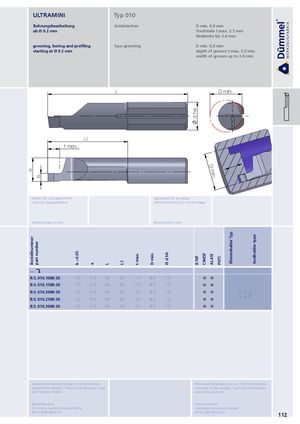

Nutbreite bis 3.0 mm
grooving, boring and profiling face grooving D min. 6.0 mm
starting at Ø 0.2 mm depth of groove t max. 3.5 mm width of groove up to 3.0 mm
L D min.
L1
t max.
D
m
in
Rechts (R): wie gezeichnet righthand (R): as shown Links (L): spiegelbildlich lefthand version (L): mirror image
Abmessungen in mm dimensions in mm
| R/L 010.1008-30 | 1.0 | 5.9 | 45 | 30 | 1.5 | 8.0 | 7.0 | |
| R/L 010.1508-30 | 1.5 | 5.9 | 45 | 30 | 2.5 | 8.0 | 7.0 | |
| R/L 010.2008-30 | 2.0 | 5.9 | 45 | 30 | 3.0 | 8.0 | 7.0 | |
| 670.∙∙∙ 676.∙∙∙ 687.∙∙∙ ∙∙∙.7 | ||||||||
| R/L 010.2508-30 | 2.5 | 5.9 | 45 | 30 | 3.5 | 8.0 | 7.0 | |
| R/L 010.3008-30 | 3.0 | 5.9 | 45 | 30 | 3.5 | 8.0 | 7.0 | |
