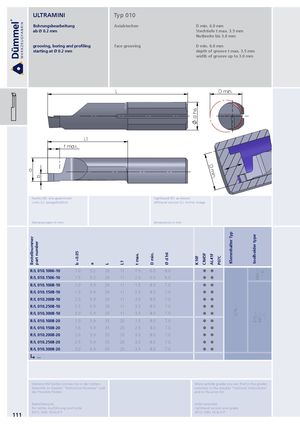

| ULTRAMINI Bohrungsbearbeitung ab Ø 0.2 mm grooving, boring and profiling starting at Ø 0.2 mm | | Typ 0 Axialste face gro | 10 chen oving | | D min. 6.0 mm Stechtiefe t max. 3.5 mm Nutbreite bis 3.0 mm D min. 6.0 mm depth of groove t max. 3.5 mm width of groove up to 3.0 mm |
| Rechts (R): wie gezeichnet Links (L): spiegelbildlich L1 b a t max. | | L | | righ left | thand (R): as shown hand version (L): mirror image d h6 D min. D min. |
| Abmessungen in mm Bestellnummer part number b +0.05 a | L | L1 | t max. | dim D min. | ensions in mm Ø d h6 K10F CN45F AL41F P07C Klemmhalter Typ toolholder type |
| R/L 010.1006-10 1.0 5.2 R/L 010.1506-10 1.5 5.2 | 26 26 | 11 11 | 1.5 2.0 | 6.0 6.0 | 6.0 660.∙∙∙ ∙∙∙.6 6.0 |
| R/L 010.1008-10 1.0 5.9 R/L 010.1508-10 1.5 5.9 | 26 26 | 11 11 | 1.5 2.5 | 8.0 8.0 | 7.0 7.0 |
| R/L 010.2008-10 2.0 5.9 R/L 010.2508-10 2.5 5.9 R/L 010.3008-10 3.0 5.9 | 26 26 26 | 11 11 11 | 3.0 3.5 3.5 | 8.0 8.0 8.0 | 676.∙∙∙ .∙∙∙ .∙∙∙ .7 7.0 7.0 7.0 |
| R/L 010.1008-20 1.0 5.9 R/L 010.1508-20 1.5 5.9 R/L 010.2008-20 2.0 5.9 R/L 010.2508-20 2.5 5.9 R/L 010.3008-20 3.0 5.9 ↳ ... | 35 35 35 35 35 | 20 20 20 20 20 | 1.5 2.5 3.0 3.5 3.5 | 8.0 8.0 8.0 8.0 8.0 | 670 687 ∙∙∙ 7.0 7.0 7.0 7.0 7.0 |
