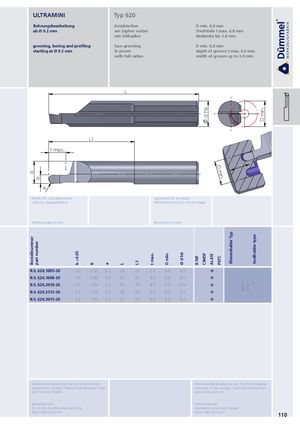

| ab Ø 0.2 mm | am Zapfen vorbei | Stechtiefe t max. 6.0 mm |
| mit Vollradius | Nutbreite bis 3.0 mm | |
| grooving, boring and profiling | face grooving | D min. 6.0 mm |
| starting at Ø 0.2 mm | in pivots | depth of groove t max. 6.0 mm |
with full radius width of groove up to 3.0 mm
L
L1
t max.
R
Rechts (R): wie gezeichnet Links (L): spiegelbildlich
righthand (R): as shown lefthand version (L): mirror image
D
m
in
Abmessungen in mm dimensions in mm
| R/L 620.1005-20 | 1.0 | 0.50 | 5.2 | 35 | 20 | 2.0 | 6.0 | 6.0 | |
| R/L 620.1608-20 | 1.6 | 0.80 | 5.2 | 35 | 20 | 3.0 | 6.0 | 6.0 | |
| R/L 620.2010-20 | 2.0 | 1.00 | 5.2 | 35 | 20 | 4.0 | 6.0 | 6.0 | |
| 660.∙∙∙ 676.∙∙∙ ∙∙∙.6 | |||||||||
| R/L 620.2512-20 | 2.5 | 1.25 | 5.2 | 35 | 20 | 5.0 | 6.0 | 6.0 | |
| R/L 620.3015-20 | 3.0 | 1.50 | 5.2 | 35 | 20 | 6.0 | 6.0 | 6.0 | |
