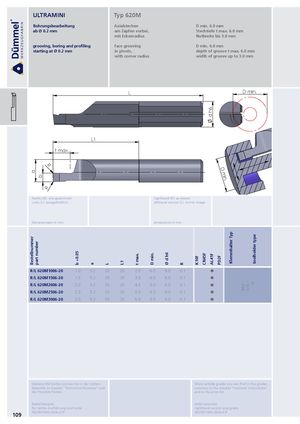

Каталог Duemmel общий 2022 - страница 114
Навигация
Общий каталог Dümmel 2014
Каталог Dümmel дополнение 2017
Каталог Dümmel дополнение 2018
Общий каталог Dümmel 2015
| ab Ø 0.2 mm | am Zapfen vorbei, | Stechtiefe t max. 6.0 mm |
| mit Eckenradius | Nutbreite bis 3.0 mm | |
| grooving, boring and profiling | face grooving | D min. 6.0 mm |
| starting at Ø 0.2 mm | in pivots, | depth of groove t max. 6.0 mm |
with corner radius width of groove up to 3.0 mm
L D min.
L1
t max.
R
R
Rechts (R): wie gezeichnet righthand (R): as shown Links (L): spiegelbildlich lefthand version (L): mirror image
D
m
in
Abmessungen in mm dimensions in mm
| R/L 620M1006-20 | 1.0 | 5.2 | 35 | 20 | 2.0 | 6.0 | 6.0 | 0.1 | |
| R/L 620M1506-20 | 1.5 | 5.2 | 35 | 20 | 3.0 | 6.0 | 6.0 | 0.1 | |
| R/L 620M2006-20 | 2.0 | 5.2 | 35 | 20 | 4.0 | 6.0 | 6.0 | 0.1 | |
| 660.∙∙∙ 676.∙∙∙ ∙∙∙.6 | |||||||||
| R/L 620M2506-20 | 2.5 | 5.2 | 35 | 20 | 5.0 | 6.0 | 6.0 | 0.1 | |
| R/L 620M3006-20 | 3.0 | 5.2 | 35 | 20 | 6.0 | 6.0 | 6.0 | 0.1 | |
