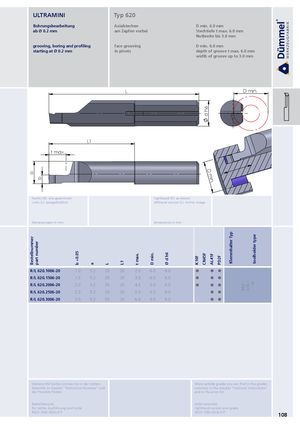

| ab Ø 0.2 mm | am Zapfen vorbei | Stechtiefe t max. 6.0 mm |
| Nutbreite bis 3.0 mm | ||
| grooving, boring and profiling | face grooving | D min. 6.0 mm |
| starting at Ø 0.2 mm | in pivots | depth of groove t max. 6.0 mm |
width of groove up to 3.0 mm
L D min.
L1
t max.
D
m
in
Rechts (R): wie gezeichnet righthand (R): as shown Links (L): spiegelbildlich lefthand version (L): mirror image
Abmessungen in mm dimensions in mm
| R/L 620.1006-20 | 1.0 | 5.2 | 35 | 20 | 2.0 | 6.0 | 6.0 | | |
| R/L 620.1506-20 | 1.5 | 5.2 | 35 | 20 | 3.0 | 6.0 | 6.0 | | |
| R/L 620.2006-20 | 2.0 | 5.2 | 35 | 20 | 4.0 | 6.0 | 6.0 | | |
| 660.∙∙∙ 676.∙∙∙ ∙∙∙.6 | |||||||||
| R/L 620.2506-20 | 2.5 | 5.2 | 35 | 20 | 5.0 | 6.0 | 6.0 | | |
| R/L 620.3006-20 | 3.0 | 5.2 | 35 | 20 | 6.0 | 6.0 | 6.0 | |
