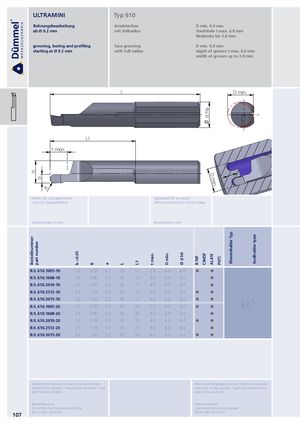

Каталог Duemmel общий 2022

ab Ø 0.2 mm	mit Vollradius	Stechtiefe t max. 6.0 mm
		Nutbreite bis 3.0 mm
grooving, boring and profiling	face grooving	D min. 6.0 mm
starting at Ø 0.2 mm	with full radius	depth of groove t max. 6.0 mm

width of groove up to 3.0 mm

Rechts (R): wie gezeich Links (L): spiegelbildlic b t max. R a	net h	L1		L		righ left	thand (R) hand versi	: as shown on (L): mi	rror image d h6 D min. D min.
Abmessungen in mm Bestellnummer part number	b +0.05	R	a	L	L1	dim t max.	ensions in D min.	mm Ø d h6	K10F CN45F AL41F P07C Klemmhalter Typ toolholder type
R/L 610.1005-10	1.0	0.50	5.2	26	11	2.0	6.0	6.0	 
R/L 610.1608-10	1.6	0.80	5.2	26	11	3.0	6.0	6.0	
R/L 610.2010-10	2.0	1.00	5.2	26	11	4.0	6.0	6.0	
R/L 610.2512-10 R/L 610.3015-10	2.5 3.0	1.25 1.50	5.2 5.2	26 26	11 11	5.0 6.0	6.0 6.0	6.0 6.0	0.∙∙∙ 6.∙∙∙ .6    
R/L 610.1005-20	1.0	0.50	5.2	35	20	2.0	6.0	6.0	66 67 ∙∙∙  
R/L 610.1608-20	1.6	0.80	5.2	35	20	3.0	6.0	6.0	
R/L 610.2010-20	2.0	1.00	5.2	35	20	4.0	6.0	6.0	 
R/L 610.2512-20	2.5	1.25	5.2	35	20	5.0	6.0	6.0	
R/L 610.3015-20	3.0	1.50	5.2	35	20	6.0	6.0	6.0	 
