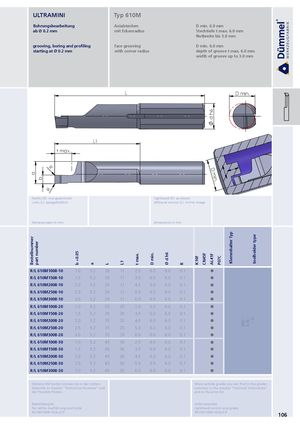

Каталог Duemmel общий 2022 - страница 111
Навигация
Общий каталог Dümmel 2014
Каталог Dümmel дополнение 2017
Каталог Dümmel дополнение 2018
Общий каталог Dümmel 2015
Nutbreite bis 3.0 mm
| grooving, boring and profiling | face grooving | D min. 6.0 mm |
| starting at Ø 0.2 mm | with corner radius | depth of groove t max. 6.0 mm |
width of groove up to 3.0 mm
| Rechts (R): wie gezeichn Links (L): spiegelbildlich R R t max b a | et . | L1 | L | righ left | thand (R) hand versi | : as shown on (L): mi | rror image d h6 D min. | D min. | ||
| Abmessungen in mm Bestellnummer part number | b +0.05 | a | L | L1 | t max. | dim D min. | ensions in Ø d h6 | mm R | K10F CN45F AL41F P07C | Klemmhalter Typ toolholder type |
| R/L 610M1008-10 | 1.0 | 5.2 | 26 | 11 | 2.0 | 6.0 | 6.0 | 0.1 | | |
| R/L 610M1508-10 | 1.5 | 5.2 | 26 | 11 | 3.0 | 6.0 | 6.0 | 0.1 | | |
| R/L 610M2008-10 | 2.0 | 5.2 | 26 | 11 | 4.0 | 6.0 | 6.0 | 0.1 | | |
| R/L 610M2508-10 R/L 610M3008-10 | 2.5 3.0 | 5.2 5.2 | 26 26 | 11 11 | 5.0 6.0 | 6.0 6.0 | 6.0 6.0 | 0.1 0.1 | | |
| R/L 610M1008-20 R/L 610M1508-20 | 1.0 1.5 | 5.2 5.2 | 35 35 | 20 20 | 2.0 3.0 | 6.0 6.0 | 6.0 6.0 | 0.1 0.1 | | ∙∙∙ ∙∙∙ |
| R/L 610M2008-20 | 2.0 | 5.2 | 35 | 20 | 4.0 | 6.0 | 6.0 | 0.1 | | 60. 76. ∙∙∙.6 |
| R/L 610M2508-20 R/L 610M3008-20 | 2.5 3.0 | 5.2 5.2 | 35 35 | 20 20 | 5.0 6.0 | 6.0 6.0 | 6.0 6.0 | 0.1 0.1 | | 6 6 |
| R/L 610M1008-30 | 1.0 | 5.2 | 45 | 30 | 2.0 | 6.0 | 6.0 | 0.1 | | |
| R/L 610M1508-30 | 1.5 | 5.2 | 45 | 30 | 3.0 | 6.0 | 6.0 | 0.1 | | |
| R/L 610M2008-30 | 2.0 | 5.2 | 45 | 30 | 4.0 | 6.0 | 6.0 | 0.1 | | |
| R/L 610M2508-30 R/L 610M3008-30 | 2.5 3.0 | 5.2 5.2 | 45 45 | 30 30 | 5.0 6.0 | 6.0 6.0 | 6.0 6.0 | 0.1 0.1 | |
