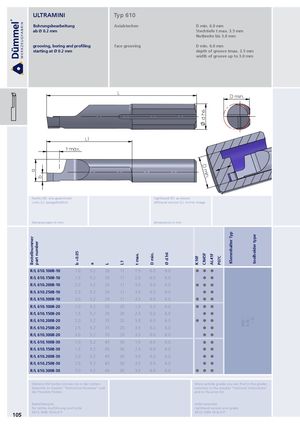

| ULTRAMINI Bohrungsbearbeitung ab Ø 0.2 mm | Typ 6 Axialste | 10 chen | D min. 6.0 mm Stechtiefe t max. 3.5 mm Nutbreite bis 3.0 mm | |||
| grooving, boring and profiling starting at Ø 0.2 mm | face gro | oving | D min. 6.0 mm depth of groove tmax. 3.5 mm width of groove up to 3.0 mm | |||
| Rechts (R): wie gezeichnet Links (L): spiegelbildlich L1 b a t max. | L | righ left | thand (R): as s hand version (L | hown ): mirror image d h6 D min. D min. | ||
| Abmessungen in mm Bestellnummer part number b +0.05 a | L | L1 | t max. | dim D min. | ensions in mm Ø d h6 | K10F CN45F AL41F P07C Klemmhalter Typ toolholder type |
| R/L 610.1008-10 1.0 5.2 R/L 610.1508-10 1.5 5.2 R/L 610.2008-10 2.0 5.2 | 26 26 26 | 11 11 11 | 1.5 2.5 3.0 | 6.0 6.0 6.0 | 6.0 6.0 6.0 | |
| R/L 610.2508-10 2.5 5.2 | 26 | 11 | 3.5 | 6.0 | 6.0 | |
| R/L 610.3008-10 3.0 5.2 | 26 | 11 | 3.5 | 6.0 | 6.0 | |
| R/L 610.1008-20 1.0 5.2 | 35 | 20 | 1.5 | 6.0 | 6.0 | |
| R/L 610.1508-20 1.5 5.2 | 35 | 20 | 2.5 | 6.0 | 6.0 | ∙∙∙ ∙∙∙ |
| R/L 610.2008-20 2.0 5.2 | 35 | 20 | 3.0 | 6.0 | 6.0 | 660. 676. ∙∙∙.6 |
| R/L 610.2508-20 2.5 5.2 | 35 | 20 | 3.5 | 6.0 | 6.0 | |
| R/L 610.3008-20 3.0 5.2 | 35 | 20 | 3.5 | 6.0 | 6.0 | |
| R/L 610.1008-30 1.0 5.2 | 45 | 30 | 1.5 | 6.0 | 6.0 | |
| R/L 610.1508-30 1.5 5.2 | 45 | 30 | 2.5 | 6.0 | 6.0 | |
| R/L 610.2008-30 2.0 5.2 | 45 | 30 | 3.0 | 6.0 | 6.0 | |
| R/L 610.2508-30 2.5 5.2 R/L 610.3008-30 3.0 5.2 | 45 45 | 30 30 | 3.5 3.5 | 6.0 6.0 | 6.0 6.0 | |
