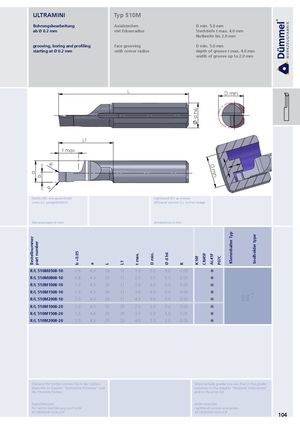

| ULTRAMINI Bohrungsbearbeitung ab Ø 0.2 mm | Typ 510M Axialstechen mit Eckenradius | | | D min. 5.0 mm Stechtiefe t max. 4.0 mm Nutbreite bis 2.0 mm |
| grooving, boring and profiling starting at Ø 0.2 mm | face grooving with corner radiu | s | | D min. 5.0 mm depth of groove t max. 4.0 mm width of groove up to 2.0 mm |
| Rechts (R): wie gezeichnet Links (L): spiegelbildlich L1 R R b a t max. | L | rig left | hthand (R): as shown hand version (L): mir | ror image d h6 D min. D min. |
| Abmessungen in mm Bestellnummer part number b +0.05 a L | L1 t max. | dim D min. | ensions in mm Ø d h6 R | K10F CN45F AL41F P07C Klemmhalter Typ toolholder type |
| R/L 510M0508-10 0.5 4.3 26 | 11 1.0 | 5.0 | 5.0 0.05 | |
| R/L 510M0808-10 0.8 4.3 26 R/L 510M1008-10 1.0 4.3 26 R/L 510M1508-10 1.5 4.3 26 R/L 510M2008-10 2.0 4.3 26 | 11 2.0 11 2.0 11 3.0 11 4.0 | 5.0 5.0 5.0 5.0 | 5.0 0.05 5.0 0.05 5.0 0.05 5.0 0.05 | 645.∙∙∙ 650.∙∙∙ ∙∙∙.5 |
| R/L 510M1008-20 1.0 4.3 35 R/L 510M1508-20 1.5 4.3 35 R/L 510M2008-20 2.0 4.3 35 | 20 2.0 20 3.0 20 4.0 | 5.0 5.0 5.0 | 5.0 0.05 5.0 0.05 5.0 0.05 | |
