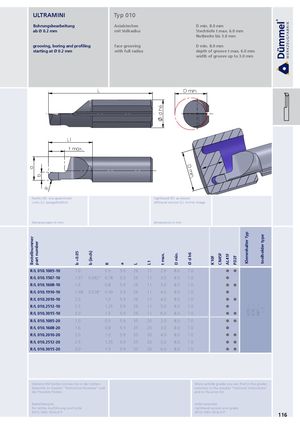

| ULTRAMINI Bohrungsbearbeitung ab Ø 0.2 mm | Typ 010 Axialstechen mit Vollradius | | D min. Stechti Nutbrei | 8.0 mm efe t max. 6.0 mm te bis 3.0 mm |
| grooving, boring and profiling starting at Ø 0.2 mm | face grooving with full radius | | D min. depth o width o | 8.0 mm f groove t max. 6.0 mm f groove up to 3.0 mm |
| Rechts (R): wie gezeichnet Links (L): spiegelbildlich L t max. L1 b a R | | righthand lefthand v d h6 | (R): as shown ersion (L): mirror image D min. D min. | |
| Abmessungen in mm Bestellnummer part number b +0.05 b (inch) R | a L L1 | dimension t max. | s in mm D min. Ø d h6 | K10F CN45F AL41F PD2F Klemmhalter Typ toolholder type |
| R/L 010.1005-10 1.0 0.5 R/L 010.1507-10 1.57 0.062" 0.78 | 5.9 26 11 5.9 26 11 | 2.0 3.0 | 8.0 7.0 8.0 7.0 | |
| R/L 010.1608-10 1.6 0.8 | 5.9 26 11 | 3.0 | 8.0 7.0 | |
| R/L 010.1910-10 1.98 0.078" 0.99 | 5.9 26 11 | 4.0 | 8.0 7.0 | |
| R/L 010.2010-10 2.0 1.0 R/L 010.2512-10 2.5 1.25 | 5.9 26 11 5.9 26 11 | 4.0 5.0 | 8.0 7.0 8.0 7.0 | 0.∙∙∙ 6.∙∙∙ 7.∙∙∙ ∙.7 |
| R/L 010.3015-10 3.0 1.5 | 5.9 26 11 | 6.0 | 8.0 7.0 | 67 67 68 ∙∙ |
| R/L 010.1005-20 1.0 0.5 R/L 010.1608-20 1.6 0.8 | 5.9 35 20 5.9 35 20 | 2.0 3.0 | 8.0 7.0 8.0 7.0 | |
| R/L 010.2010-20 2.0 1.0 R/L 010.2512-20 2.5 1.25 R/L 010.3015-20 3.0 1.5 | 5.9 35 20 5.9 35 20 5.9 35 20 | 4.0 5.0 6.0 | 8.0 7.0 8.0 7.0 8.0 7.0 | |
