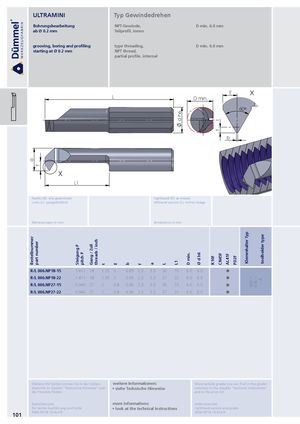

| Bohrungsbearbeitung | NPT-Gewinde, | D min. 6.0 mm |
| ab Ø 0.2 mm | Teilprofil, innen | |
| grooving, boring and profiling | type threading, | D min. 6.0 mm |
starting at Ø 0.2 mm NPT thread, partial profile, internal
E X
L D min.
60°
b
X
L1
Rechts (R): wie gezeichnet righthand (R): as shown Links (L): spiegelbildlich lefthand version (L): mirror image
Abmessungen in mm dimensions in mm
| R/L 006.NP18-15 | 1.411 | 18 | 1.35 | 1 | 0.09 | 2.3 | 5.3 | 30 | 15 | 6.0 | 6.0 | | |
| R/L 006.NP18-22 | 1.411 | 18 | 1.35 | 1 | 0.09 | 2.3 | 5.3 | 37 | 22 | 6.0 | 6.0 | | |
| R/L 006.NP27-15 | 0.940 | 27 | 1 | 0.8 | 0.06 | 2.3 | 5.3 | 30 | 15 | 6.0 | 6.0 | | 660.∙∙∙ 676.∙∙∙ ∙∙∙.6 |
| R/L 006.NP27-22 | 0.940 | 27 | 1 | 0.8 | 0.06 | 2.3 | 5.3 | 37 | 22 | 6.0 | 6.0 | |
R006.NP18-15/AL41F R006.NP18-15/AL41F
