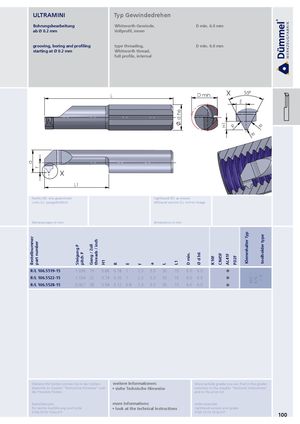

| Bohrungsbearbeitung | Whitworth-Gewinde, | D min. 6.0 mm |
| ab Ø 0.2 mm | Vollprofil, innen | |
| grooving, boring and profiling | type threading, | D min. 6.0 mm |
starting at Ø 0.2 mm Whitworth thread, full profile, internal
X 55°
L D min.
E
R
R
R
X
L1
Rechts (R): wie gezeichnet righthand (R): as shown Links (L): spiegelbildlich lefthand version (L): mirror image
Abmessungen in mm dimensions in mm
| R/L 106.5519-15 | 1.336 | 19 | 0.86 | 0.18 | 1 | 2.3 | 5.3 | 30 | 15 | 6.0 | 6.0 | | |
| R/L 106.5522-15 | 1.154 | 22 | 0.74 | 0.16 | 1 | 2.3 | 5.3 | 30 | 15 | 6.0 | 6.0 | | |
| 660.∙∙∙ 676.∙∙∙ ∙∙∙.6 | |||||||||||||
| R/L 106.5528-15 | 0.907 | 28 | 0.58 | 0.12 | 0.8 | 2.3 | 5.3 | 30 | 15 | 6.0 | 6.0 | |
