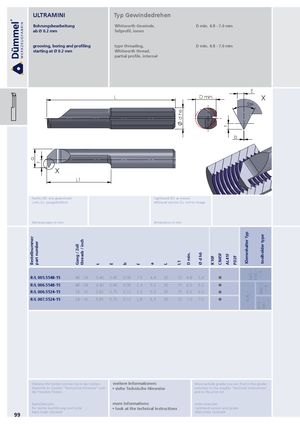

| Bohrungsbearbeitung | Whitworth-Gewinde, | D min. 4.8 - 7.0 mm |
| ab Ø 0.2 mm | Teilprofil, innen | |
| grooving, boring and profiling | type threading, | D min. 4.8 - 7.0 mm |
starting at Ø 0.2 mm Whitworth thread, partial profile, internal
E
L D min. X
55°
b
X
L1
Rechts (R): wie gezeichnet righthand (R): as shown Links (L): spiegelbildlich lefthand version (L): mirror image
Abmessungen in mm dimensions in mm
| R/L 005.5548-15 | 48 - 24 | 0.40 | 0.45 | 0.06 | 1.9 | 4.4 | 30 | 15 | 4.8 | 5.0 | | 645.∙∙∙ 650.∙∙∙ ∙∙∙.5 | |
| R/L 006.5548-15 | 48 - 24 | 0.40 | 0.45 | 0.06 | 2.3 | 5.3 | 30 | 15 | 6.0 | 6.0 | | ||
| R/L 006.5524-15 | 24 - 16 | 0.81 | 0.75 | 0.12 | 2.3 | 5.3 | 30 | 15 | 6.0 | 6.0 | | 660.∙∙∙ ∙∙∙.6 | |
| R/L 007.5524-15 | 24 - 16 | 0.81 | 0.75 | 0.12 | 2.8 | 6.3 | 30 | 15 | 7.0 | 7.0 | |
670.∙∙∙ 687.∙∙∙ ∙∙∙.7
