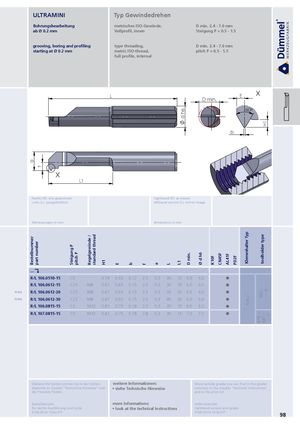

Каталог Duemmel общий 2022 - страница 103
Навигация
Общий каталог Dümmel 2014
Каталог Dümmel дополнение 2017
Каталог Dümmel дополнение 2018
Общий каталог Dümmel 2015
| ab Ø 0.2 mm | Vollprofil, innen | Steigung P = 0.5 - 1.5 |
| grooving, boring and profiling | type threading, | D min. 2.4 - 7.0 mm |
| starting at Ø 0.2 mm | metric ISO-thread, | pitch P = 0.5 - 1.5 |
full profile, internal
X
L E
D min.
60°
b
X
L1
Rechts (R): wie gezeichnet righthand (R): as shown Links (L): spiegelbildlich lefthand version (L): mirror image
Abmessungen in mm dimensions in mm
| R/L 106.0510-15 | 1.0 | 0.54 | 0.55 | 0.12 | 2.3 | 5.3 | 30 | 15 | 6.0 | 6.0 | | ||
| R/L 106.0612-15 | 1.25 | M8 | 0.67 | 0.65 | 0.15 | 2.3 | 5.3 | 30 | 15 | 6.0 | 6.0 | | |
| neu | R/L 106.0612-20 | 1.25 | M8 | 0.67 | 0.65 | 0.15 | 2.3 | 5.3 | 35 | 20 | 6.0 | 6.0 | |
| neu | R/L 106.0612-30 | 1.25 | M8 | 0.67 | 0.65 | 0.15 | 2.3 | 5.3 | 45 | 30 | 6.0 | 6.0 | |
| R/L 106.0815-15 | 1.5 | M10 | 0.81 | 0.75 | 0.18 | 2.3 | 5.3 | 30 | 15 | 6.0 | 6.0 | | |
| R/L 107.0815-15 | 1.5 | M10 | 0.81 | 0.75 | 0.18 | 2.8 | 6.3 | 30 | 15 | 7.0 | 7.0 | |
660.∙∙∙ ∙∙∙.6
670.∙∙∙ 687.∙∙∙ ∙∙∙.7
