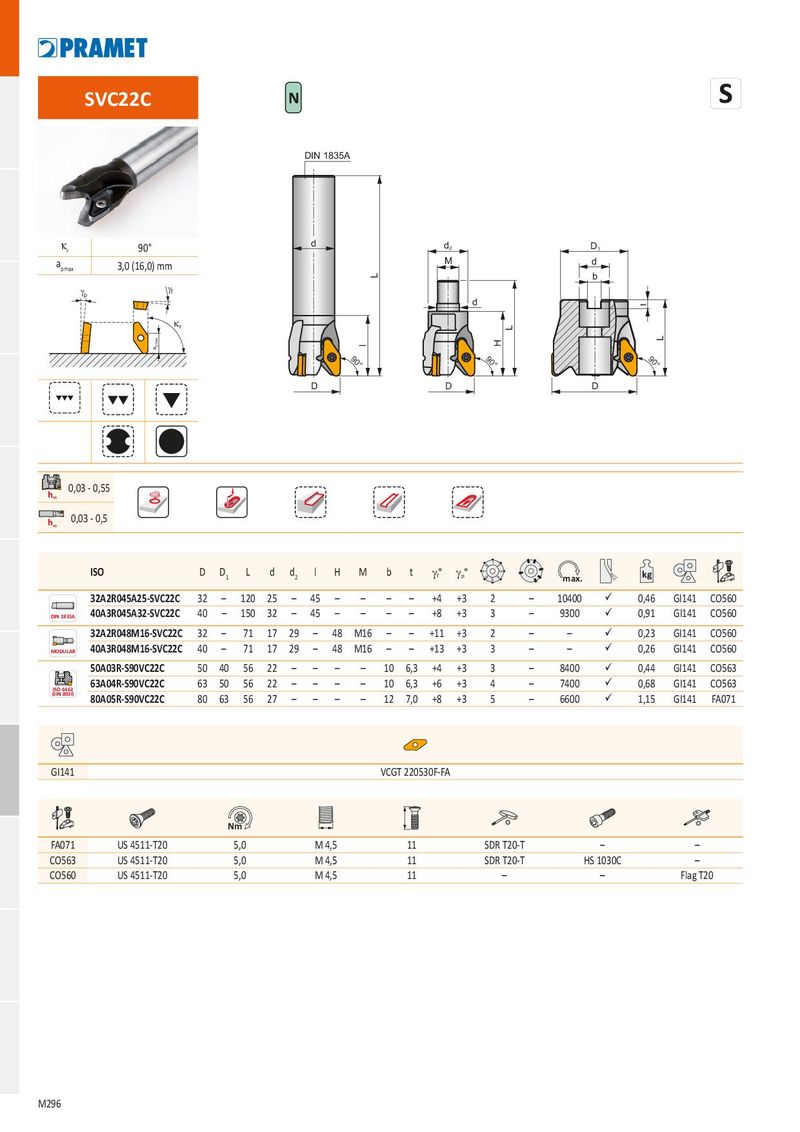

SVC22C N
DIN 1835A
| k | 90° | d | d | D | |
| r | 2 | 1 | |||
| a | 3,0 (16,0) mm | M | d |
pmax b g g p f d
k r
90° 90° 90°
D D D
0,03 - 0,55 h m 0,03 - 0,5 h m
| ISO | D | D1 | L | d | d2 | l | H | M | b | t | g° f | g° p | 1 2 3 4 5 6 7 8 | max. | kg | |||||
| 32A2R045A25-SVC22C | 32 | – | 120 | 25 | – | 45 | – | – | – | – | +4 | +3 | 2 | – | 10400 | ü | 0,46 | GI141 | CO560 | |
| DIN 1835A | 40A3R045A32-SVC22C | 40 | – | 150 | 32 | – | 45 | – | – | – | – | +8 | +3 | 3 | – | 9300 | ü | 0,91 | GI141 | CO560 |
| 32A2R048M16-SVC22C | 32 | – | 71 | 17 | 29 | – | 48 | M16 | – | – | +11 | +3 | 2 | – | – | ü | 0,23 | GI141 | CO560 | |
| MODULAR | 40A3R048M16-SVC22C | 40 | – | 71 | 17 | 29 | – | 48 | M16 | – | – | +13 | +3 | 3 | – | – | ü | 0,26 | GI141 | CO560 |
| 50A03R-S90VC22C | 50 | 40 | 56 | 22 | – | – | – | – | 10 | 6,3 | +4 | +3 | 3 | – | 8400 | ü | 0,44 | GI141 | CO563 | |
| ISO 6462 | 63A04R-S90VC22C | 63 | 50 | 56 | 22 | – | – | – | – | 10 | 6,3 | +6 | +3 | 4 | – | 7400 | ü | 0,68 | GI141 | CO563 |
| DIN 8030 | 80A05R-S90VC22C | 80 | 63 | 56 | 27 | – | – | – | – | 12 | 7,0 | +8 | +3 | 5 | – | 6600 | ü | 1,15 | GI141 | FA071 |
GI141 VCGT 220530F-FA
| Nm | |||||||
| FA071 | US 4511-T20 | 5,0 | M 4,5 | 11 | SDR T20-T | – | – |
| CO563 | US 4511-T20 | 5,0 | M 4,5 | 11 | SDR T20-T | HS 1030C | – |
| CO560 | US 4511-T20 | 5,0 | M 4,5 | 11 | – | – | FlagT20 |
