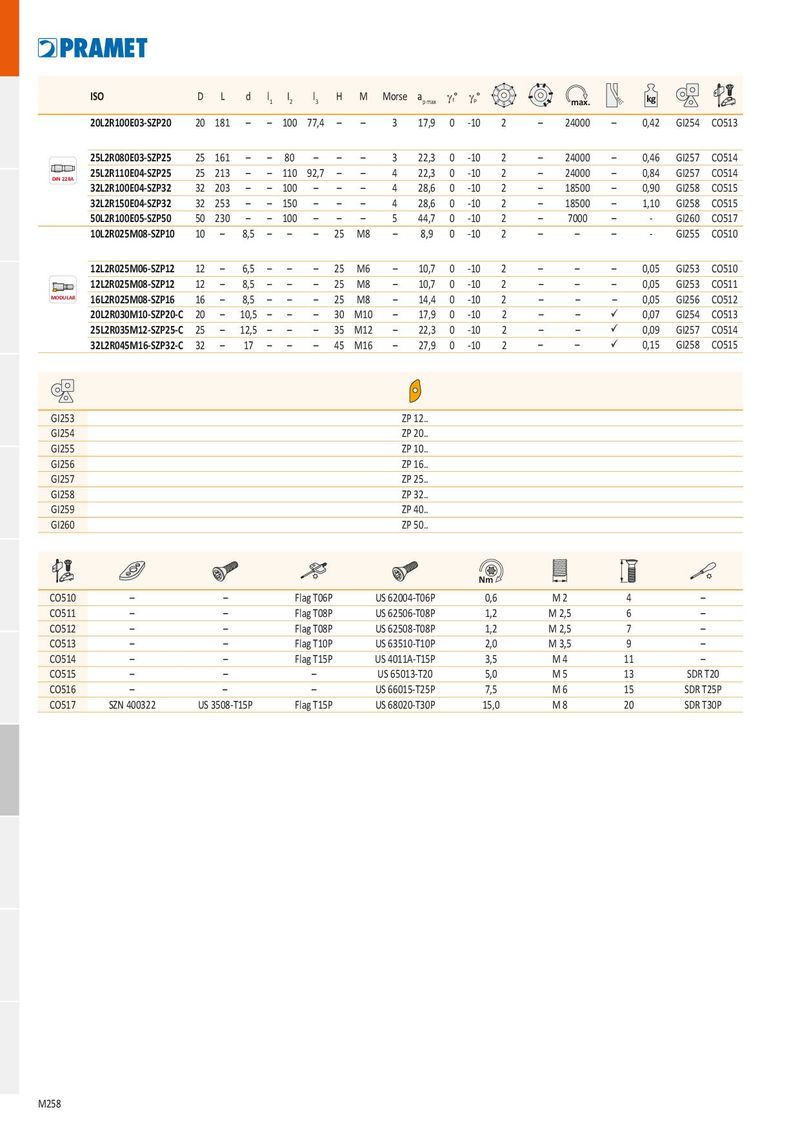

Общий каталог Dormer Pramet 2017 - страница 725
Навигация
Каталог Dormer Pramet токарная обработка 2021 - 2022
Каталог Dormer Pramet обработка отверстий 2021 - 2022
Общий каталог Dormer Pramet 2018
Брошюра Dormer Pramet новинки 2021
Общий каталог Dormer Pramet 2016
| ISO | D | L | d | l1 | I2 | l3 | H | M | Morse | ap max | g° f g° p | 1 2 3 4 5 6 7 8 | max. | kg | |||||
| 20L2R100E03-SZP20 | 20 | 181 | – | – | 100 | 77,4 | – | – | 3 | 17,9 | 0 -10 | 2 | – | 24000 | – | 0,42 | GI254 | CO513 | |
| 25L2R080E03-SZP25 | 25 | 161 | – | – | 80 | – | – | – | 3 | 22,3 | 0 -10 | 2 | – | 24000 | – | 0,46 | GI257 | CO514 | |
| DIN 228A | 25L2R110E04-SZP25 | 25 | 213 | – | – | 110 | 92,7 | – | – | 4 | 22,3 | 0 -10 | 2 | – | 24000 | – | 0,84 | GI257 | CO514 |
| 32L2R100E04-SZP32 | 32 | 203 | – | – | 100 | – | – | – | 4 | 28,6 | 0 -10 | 2 | – | 18500 | – | 0,90 | GI258 | CO515 | |
| 32L2R150E04-SZP32 | 32 | 253 | – | – | 150 | – | – | – | 4 | 28,6 | 0 -10 | 2 | – | 18500 | – | 1,10 | GI258 | CO515 | |
| 50L2R100E05-SZP50 | 50 | 230 | – | – | 100 | – | – | – | 5 | 44,7 | 0 -10 | 2 | – | 7000 | – | - | GI260 | CO517 | |
| 10L2R025M08-SZP10 | 10 | – | 8,5 | – | – | – | 25 | M8 | – | 8,9 | 0 -10 | 2 | – | – | – | - | GI255 | CO510 | |
| 12L2R025M06-SZP12 | 12 | – | 6,5 | – | – | – | 25 | M6 | – | 10,7 | 0 -10 | 2 | – | – | – | 0,05 | GI253 | CO510 | |
| 12L2R025M08-SZP12 | 12 | – | 8,5 | – | – | – | 25 | M8 | – | 10,7 | 0 -10 | 2 | – | – | – | 0,05 | GI253 | CO511 | |
| MODULAR | 16L2R025M08-SZP16 | 16 | – | 8,5 | – | – | – | 25 | M8 | – | 14,4 | 0 -10 | 2 | – | – | – | 0,05 | GI256 | CO512 |
| 20L2R030M10-SZP20-C | 20 | – | 10,5 | – | – | – | 30 | M10 | – | 17,9 | 0 -10 | 2 | – | – | ü | 0,07 | GI254 | CO513 | |
| 25L2R035M12-SZP25-C | 25 | – | 12,5 | – | – | – | 35 | M12 | – | 22,3 | 0 -10 | 2 | – | – | ü | 0,09 | GI257 | CO514 | |
| 32L2R045M16-SZP32-C | 32 | – | 17 | – | – | – | 45 | M16 | – | 27,9 | 0 -10 | 2 | – | – | ü | 0,15 | GI258 | CO515 |
| GI253 ZP 12.. |
| GI254 ZP 20.. |
| GI255 ZP 10.. |
| GI256 ZP 16.. |
| GI257 ZP 25.. |
| GI258 ZP 32.. |
| GI259 ZP 40.. |
| GI260 ZP 50.. |
| Nm | ||||||||
| CO510 | – | – | FlagT06P | US 62004-T06P | 0,6 | M 2 | 4 | – |
| CO511 | – | – | FlagT08P | US 62506-T08P | 1,2 | M 2,5 | 6 | – |
| CO512 | – | – | FlagT08P | US 62508-T08P | 1,2 | M 2,5 | 7 | – |
| CO513 | – | – | FlagT10P | US 63510-T10P | 2,0 | M 3,5 | 9 | – |
| CO514 | – | – | FlagT15P | US 4011A-T15P | 3,5 | M 4 | 11 | – |
| CO515 | – | – | – | US 65013-T20 | 5,0 | M 5 | 13 | SDR T20 |
| CO516 | – | – | – | US 66015-T25P | 7,5 | M 6 | 15 | SDR T25P |
| CO517 | SZN 400322 | US 3508-T15P | FlagT15P | US 68020-T30P | 15,0 | M 8 | 20 | SDR T30P |
