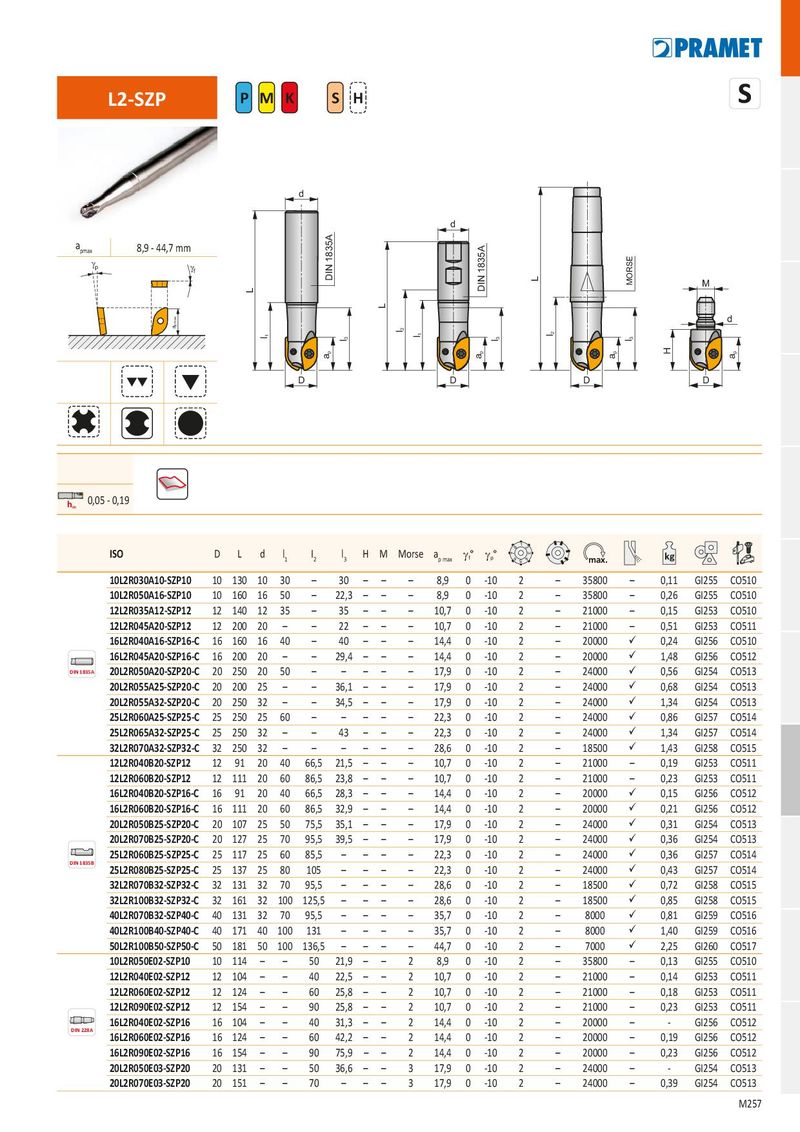

L2-SZP P M K S H
a 8,9 - 44,7 mm pmax g g p f
d
d
M
d
D D D D
0,05 - 0,19 h m
| ISO | D | L | d | l | 1 | I2 | l3 | H | M | Morse | ap max | g° f | g° p | 1 2 3 4 5 6 7 8 | max. | kg | |||||
| 10L2R030A10-SZP10 | 10 | 130 | 10 | 3 | 0 | – | 30 | – | – | – | 8,9 | 0 | -10 | 2 | – | 35800 | – | 0,11 | GI255 | CO510 | |
| 10L2R050A16-SZP10 | 10 | 160 | 16 | 5 | 0 | – | 22,3 | – | – | – | 8,9 | 0 | -10 | 2 | – | 35800 | – | 0,26 | GI255 | CO510 | |
| 12L2R035A12-SZP12 | 12 | 140 | 12 | 3 | 5 | – | 35 | – | – | – | 10,7 | 0 | -10 | 2 | – | 21000 | – | 0,15 | GI253 | CO510 | |
| 12L2R045A20-SZP12 | 12 | 200 | 20 | – | – | 22 | – | – | – | 10,7 | 0 | -10 | 2 | – | 21000 | – | 0,51 | GI253 | CO511 | ||
| 16L2R040A16-SZP16-C | 16 | 160 | 16 | 4 | 0 | – | 40 | – | – | – | 14,4 | 0 | -10 | 2 | – | 20000 | ü | 0,24 | GI256 | CO510 | |
| 16L2R045A20-SZP16-C | 16 | 200 | 20 | – | – | 29,4 | – | – | – | 14,4 | 0 | -10 | 2 | – | 20000 | ü | 1,48 | GI256 | CO512 | ||
| DIN 1835A | 20L2R050A20-SZP20-C | 20 | 250 | 20 | 5 | 0 | – | – | – | – | – | 17,9 | 0 | -10 | 2 | – | 24000 | ü | 0,56 | GI254 | CO513 |
| 20L2R055A25-SZP20-C | 20 | 200 | 25 | – | – | 36,1 | – | – | – | 17,9 | 0 | -10 | 2 | – | 24000 | ü | 0,68 | GI254 | CO513 | ||
| 20L2R055A32-SZP20-C | 20 | 250 | 32 | – | – | 34,5 | – | – | – | 17,9 | 0 | -10 | 2 | – | 24000 | ü | 1,34 | GI254 | CO513 | ||
| 25L2R060A25-SZP25-C | 25 | 250 | 25 | 6 | 0 | – | – | – | – | – | 22,3 | 0 | -10 | 2 | – | 24000 | ü | 0,86 | GI257 | CO514 | |
| 25L2R065A32-SZP25-C | 25 | 250 | 32 | – | – | 43 | – | – | – | 22,3 | 0 | -10 | 2 | – | 24000 | ü | 1,34 | GI257 | CO514 | ||
| 32L2R070A32-SZP32-C | 32 | 250 | 32 | – | – | – | – | – | – | 28,6 | 0 | -10 | 2 | – | 18500 | ü | 1,43 | GI258 | CO515 | ||
| 12L2R040B20-SZP12 | 12 | 91 | 20 | 4 | 0 | 66,5 | 21,5 | – | – | – | 10,7 | 0 | -10 | 2 | – | 21000 | – | 0,19 | GI253 | CO511 | |
| 12L2R060B20-SZP12 | 12 | 111 | 20 | 6 | 0 | 86,5 | 23,8 | – | – | – | 10,7 | 0 | -10 | 2 | – | 21000 | – | 0,23 | GI253 | CO511 | |
| 16L2R040B20-SZP16-C | 16 | 91 | 20 | 4 | 0 | 66,5 | 28,3 | – | – | – | 14,4 | 0 | -10 | 2 | – | 20000 | ü | 0,15 | GI256 | CO512 | |
| 16L2R060B20-SZP16-C | 16 | 111 | 20 | 6 | 0 | 86,5 | 32,9 | – | – | – | 14,4 | 0 | -10 | 2 | – | 20000 | ü | 0,21 | GI256 | CO512 | |
| 20L2R050B25-SZP20-C | 20 | 107 | 25 | 5 | 0 | 75,5 | 35,1 | – | – | – | 17,9 | 0 | -10 | 2 | – | 24000 | ü | 0,31 | GI254 | CO513 | |
| 20L2R070B25-SZP20-C | 20 | 127 | 25 | 7 | 0 | 95,5 | 39,5 | – | – | – | 17,9 | 0 | -10 | 2 | – | 24000 | ü | 0,36 | GI254 | CO513 | |
| 25L2R060B25-SZP25-C | 25 | 117 | 25 | 6 | 0 | 85,5 | – | – | – | – | 22,3 | 0 | -10 | 2 | – | 24000 | ü | 0,36 | GI257 | CO514 | |
| DIN 1835B | 25L2R080B25-SZP25-C | 25 | 137 | 25 | 8 | 0 | 105 | – | – | – | – | 22,3 | 0 | -10 | 2 | – | 24000 | ü | 0,43 | GI257 | CO514 |
| 32L2R070B32-SZP32-C | 32 | 131 | 32 | 7 | 0 | 95,5 | – | – | – | – | 28,6 | 0 | -10 | 2 | – | 18500 | ü | 0,72 | GI258 | CO515 | |
| 32L2R100B32-SZP32-C | 32 | 161 | 32 | 10 | 0 | 125,5 | – | – | – | – | 28,6 | 0 | -10 | 2 | – | 18500 | ü | 0,85 | GI258 | CO515 | |
| 40L2R070B32-SZP40-C | 40 | 131 | 32 | 7 | 0 | 95,5 | – | – | – | – | 35,7 | 0 | -10 | 2 | – | 8000 | ü | 0,81 | GI259 | CO516 | |
| 40L2R100B40-SZP40-C | 40 | 171 | 40 | 10 | 0 | 131 | – | – | – | – | 35,7 | 0 | -10 | 2 | – | 8000 | ü | 1,40 | GI259 | CO516 | |
| 50L2R100B50-SZP50-C | 50 | 181 | 50 | 10 | 0 | 136,5 | – | – | – | – | 44,7 | 0 | -10 | 2 | – | 7000 | ü | 2,25 | GI260 | CO517 | |
| 10L2R050E02-SZP10 | 10 | 114 | – | – | 50 | 21,9 | – | – | 2 | 8,9 | 0 | -10 | 2 | – | 35800 | – | 0,13 | GI255 | CO510 | ||
| 12L2R040E02-SZP12 | 12 | 104 | – | – | 40 | 22,5 | – | – | 2 | 10,7 | 0 | -10 | 2 | – | 21000 | – | 0,14 | GI253 | CO511 | ||
| 12L2R060E02-SZP12 | 12 | 124 | – | – | 60 | 25,8 | – | – | 2 | 10,7 | 0 | -10 | 2 | – | 21000 | – | 0,18 | GI253 | CO511 | ||
| 12L2R090E02-SZP12 | 12 | 154 | – | – | 90 | 25,8 | – | – | 2 | 10,7 | 0 | -10 | 2 | – | 21000 | – | 0,23 | GI253 | CO511 | ||
| 16L2R040E02-SZP16 | 16 | 104 | – | – | 40 | 31,3 | – | – | 2 | 14,4 | 0 | -10 | 2 | – | 20000 | – | - | GI256 | CO512 | ||
| DIN 228A | 16L2R060E02-SZP16 | 16 | 124 | – | – | 60 | 42,2 | – | – | 2 | 14,4 | 0 | -10 | 2 | – | 20000 | – | 0,19 | GI256 | CO512 | |
| 16L2R090E02-SZP16 | 16 | 154 | – | – | 90 | 75,9 | – | – | 2 | 14,4 | 0 | -10 | 2 | – | 20000 | – | 0,23 | GI256 | CO512 | ||
| 20L2R050E03-SZP20 | 20 | 131 | – | – | 50 | 36,6 | – | – | 3 | 17,9 | 0 | -10 | 2 | – | 24000 | – | - | GI254 | CO513 | ||
| 20L2R070E03-SZP20 | 20 | 151 | – | – | 70 | – | – | – | 3 | 17,9 | 0 | -10 | 2 | – | 24000 | – | 0,39 | GI254 | CO513 |
