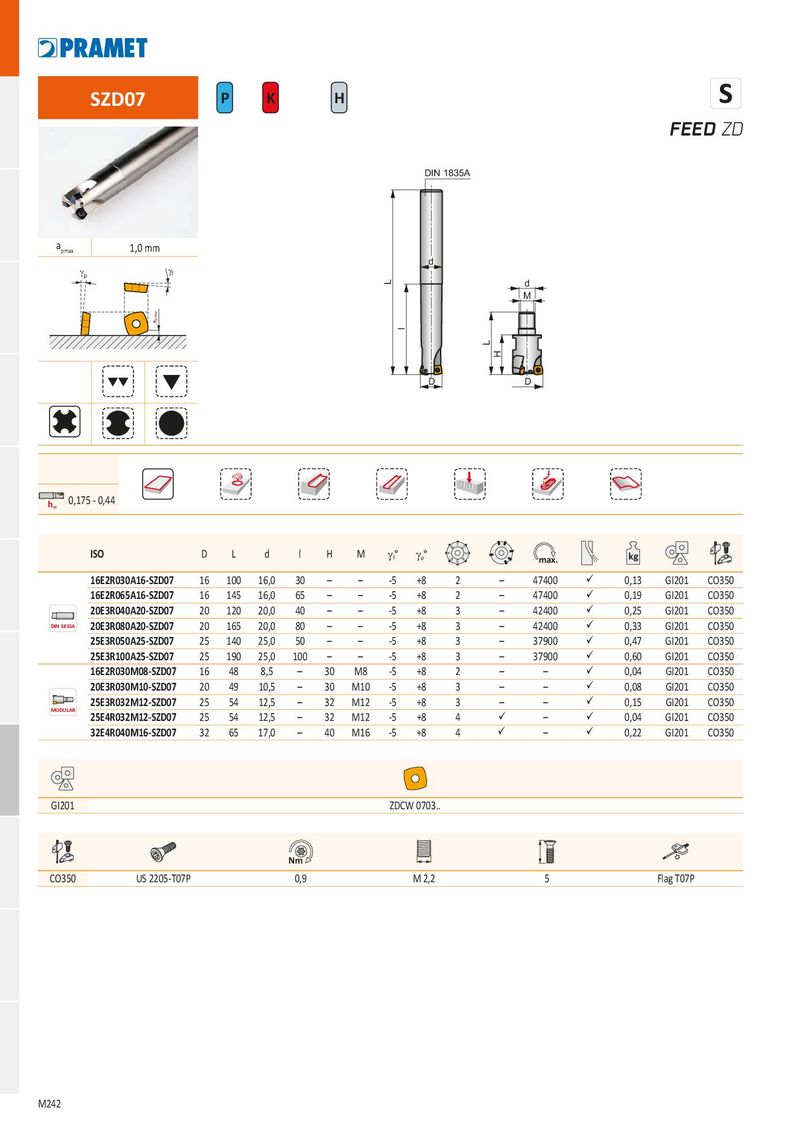

FEED ZD
DIN 1835A
a 1,0 mm pmax g g p f
d
d M
D D
0,175 - 0,44 h m
| ISO | D | L | d | l | H | M | g° f | g° p | 1 2 3 4 5 6 7 8 | max. | kg | |||||
| 16E2R030A16-SZD07 | 16 | 100 | 16,0 | 30 | – | – | -5 | +8 | 2 | – | 47400 | ü | 0,13 | GI201 | CO350 | |
| 16E2R065A16-SZD07 | 16 | 145 | 16,0 | 65 | – | – | -5 | +8 | 2 | – | 47400 | ü | 0,19 | GI201 | CO350 | |
| 20E3R040A20-SZD07 | 20 | 120 | 20,0 | 40 | – | – | -5 | +8 | 3 | – | 42400 | ü | 0,25 | GI201 | CO350 | |
| DIN 1835A | 20E3R080A20-SZD07 | 20 | 165 | 20,0 | 80 | – | – | -5 | +8 | 3 | – | 42400 | ü | 0,33 | GI201 | CO350 |
| 25E3R050A25-SZD07 | 25 | 140 | 25,0 | 50 | – | – | -5 | +8 | 3 | – | 37900 | ü | 0,47 | GI201 | CO350 | |
| 25E3R100A25-SZD07 | 25 | 190 | 25,0 | 100 | – | – | -5 | +8 | 3 | – | 37900 | ü | 0,60 | GI201 | CO350 | |
| 16E2R030M08-SZD07 | 16 | 48 | 8,5 | – | 30 | M8 | -5 | +8 | 2 | – | – | ü | 0,04 | GI201 | CO350 | |
| 20E3R030M10-SZD07 | 20 | 49 | 10,5 | – | 30 | M10 | -5 | +8 | 3 | – | – | ü | 0,08 | GI201 | CO350 | |
| MODULAR | 25E3R032M12-SZD07 | 25 | 54 | 12,5 | – | 32 | M12 | -5 | +8 | 3 | – | – | ü | 0,15 | GI201 | CO350 |
| 25E4R032M12-SZD07 | 25 | 54 | 12,5 | – | 32 | M12 | -5 | +8 | 4 | ü | – | ü | 0,04 | GI201 | CO350 | |
| 32E4R040M16-SZD07 | 32 | 65 | 17,0 | – | 40 | M16 | -5 | +8 | 4 | ü | – | ü | 0,22 | GI201 | CO350 |
GI201 ZDCW 0703..
| Nm | ||||
| CO350 | US 2205-T07P | 0,9 | M 2,2 | 5 FlagT07P |
