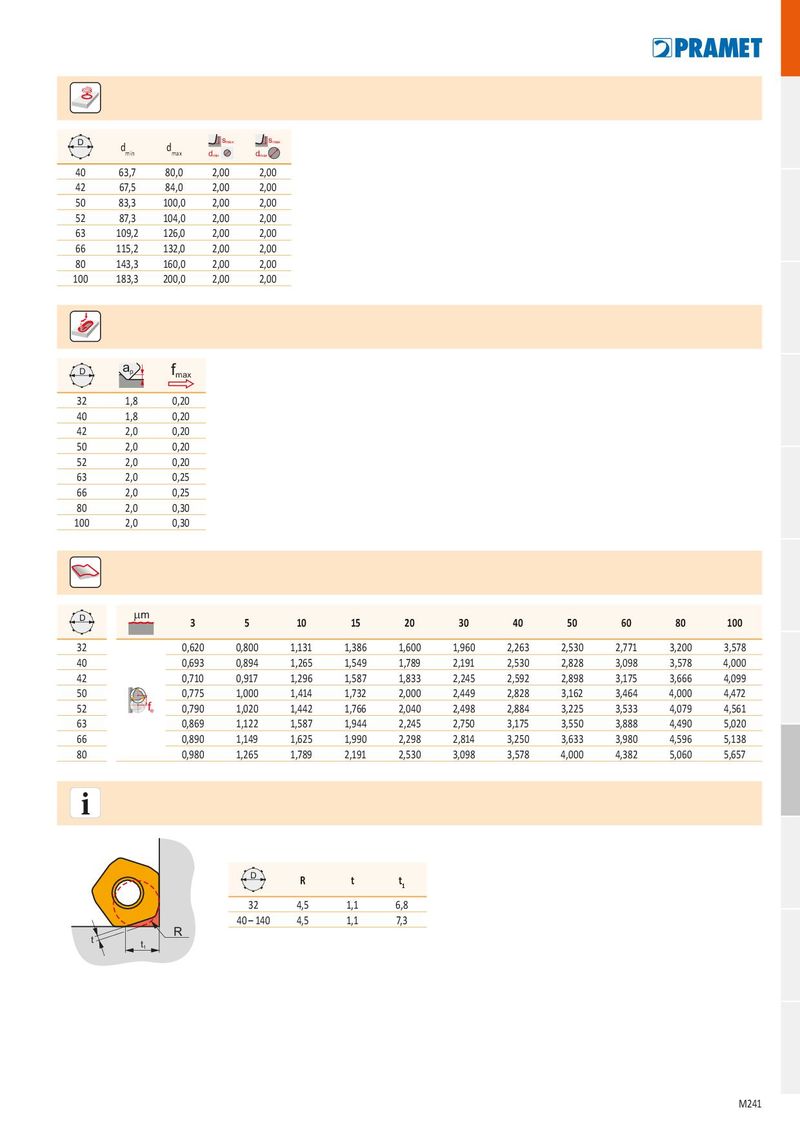

Общий каталог Dormer Pramet 2017 - страница 708
Навигация
Каталог Dormer Pramet токарная обработка 2021 - 2022
Каталог Dormer Pramet обработка отверстий 2021 - 2022
Общий каталог Dormer Pramet 2018
Брошюра Dormer Pramet новинки 2021
Общий каталог Dormer Pramet 2016
| D | dmin | dmax | dmin smax | dmax smax |
| 40 | 63,7 | 80,0 | 2,00 | 2,00 |
| 42 | 67,5 | 84,0 | 2,00 | 2,00 |
| 50 | 83,3 | 100,0 | 2,00 | 2,00 |
| 52 | 87,3 | 104,0 | 2,00 | 2,00 |
| 63 | 109,2 | 126,0 | 2,00 | 2,00 |
| 66 | 115,2 | 132,0 | 2,00 | 2,00 |
| 80 | 143,3 | 160,0 | 2,00 | 2,00 |
| 100 | 183,3 | 200,0 | 2,00 | 2,00 |
| D | ap | fmax |
| 32 | 1,8 | 0,20 |
| 40 | 1,8 | 0,20 |
| 42 | 2,0 | 0,20 |
| 50 | 2,0 | 0,20 |
| 52 | 2,0 | 0,20 |
| 63 | 2,0 | 0,25 |
| 66 | 2,0 | 0,25 |
| 80 | 2,0 | 0,30 |
| 100 | 2,0 | 0,30 |
| D | m m | 3 | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 60 | 80 | 100 |
| 32 | 0,620 | 0,800 | 1,131 | 1,386 | 1,600 | 1,960 | 2,263 | 2,530 | 2,771 | 3,200 | 3,578 | |
| 40 | 0,693 | 0,894 | 1,265 | 1,549 | 1,789 | 2,191 | 2,530 | 2,828 | 3,098 | 3,578 | 4,000 | |
| 42 | 0,710 | 0,917 | 1,296 | 1,587 | 1,833 | 2,245 | 2,592 | 2,898 | 3,175 | 3,666 | 4,099 | |
| 50 | 0,775 | 1,000 | 1,414 | 1,732 | 2,000 | 2,449 | 2,828 | 3,162 | 3,464 | 4,000 | 4,472 | |
| 52 | fe | 0,790 | 1,020 | 1,442 | 1,766 | 2,040 | 2,498 | 2,884 | 3,225 | 3,533 | 4,079 | 4,561 |
| 63 | 0,869 | 1,122 | 1,587 | 1,944 | 2,245 | 2,750 | 3,175 | 3,550 | 3,888 | 4,490 | 5,020 | |
| 66 | 0,890 | 1,149 | 1,625 | 1,990 | 2,298 | 2,814 | 3,250 | 3,633 | 3,980 | 4,596 | 5,138 | |
| 80 | 0,980 | 1,265 | 1,789 | 2,191 | 2,530 | 3,098 | 3,578 | 4,000 | 4,382 | 5,060 | 5,657 |
i
| D | R | t | t1 |
| 32 | 4,5 | 1,1 | 6,8 |
| 40 – 140 | 4,5 | 1,1 | 7,3 |
R t t 1
