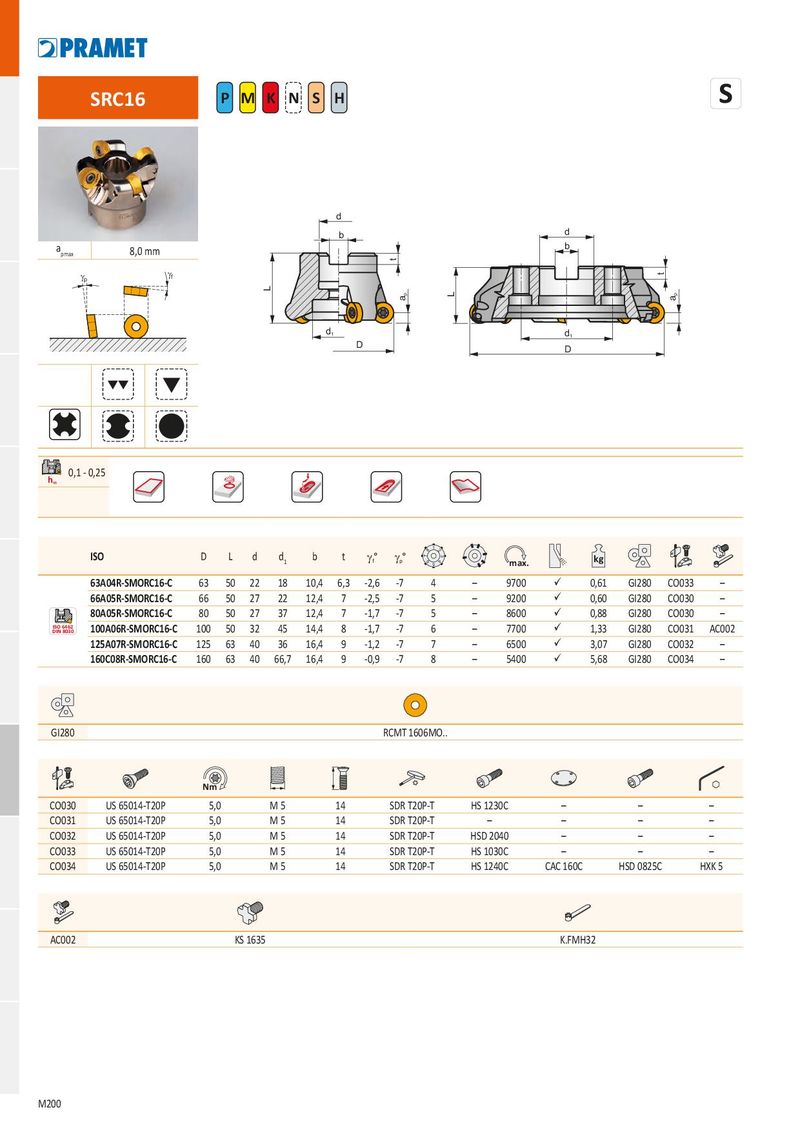

a 8,0 mm pmax g g p f
d b d b
d d 1 1 D D
0,1 - 0,25 h m
| ISO | D | L | d | d1 | b | t | g° f | g° p | 1 2 3 4 5 6 7 8 | max. | kg | ||||||
| 63A04R-SMORC16-C | 63 | 50 | 22 | 18 | 10,4 | 6,3 | -2,6 | -7 | 4 | – | 9700 | ü | 0,61 | GI280 | CO033 | – | |
| 66A05R-SMORC16-C | 66 | 50 | 27 | 22 | 12,4 | 7 | -2,5 | -7 | 5 | – | 9200 | ü | 0,60 | GI280 | CO030 | – | |
| 80A05R-SMORC16-C | 80 | 50 | 27 | 37 | 12,4 | 7 | -1,7 | -7 | 5 | – | 8600 | ü | 0,88 | GI280 | CO030 | – | |
| ISO 6462 DIN 8030 | 100A06R-SMORC16-C | 100 | 50 | 32 | 45 | 14,4 | 8 | -1,7 | -7 | 6 | – | 7700 | ü | 1,33 | GI280 | CO031 | AC002 |
| 125A07R-SMORC16-C | 125 | 63 | 40 | 36 | 16,4 | 9 | -1,2 | -7 | 7 | – | 6500 | ü | 3,07 | GI280 | CO032 | – | |
| 160C08R-SMORC16-C | 160 | 63 | 40 | 66,7 | 16,4 | 9 | -0,9 | -7 | 8 | – | 5400 | ü | 5,68 | GI280 | CO034 | – |
GI280 RCMT 1606MO..
| Nm | |||||||||
| CO030 | US 65014-T20P | 5,0 | M 5 | 14 | SDR T20P-T | HS 1230C | – | – | – |
| CO031 | US 65014-T20P | 5,0 | M 5 | 14 | SDR T20P-T | – | – | – | – |
| CO032 | US 65014-T20P | 5,0 | M 5 | 14 | SDR T20P-T | HSD 2040 | – | – | – |
| CO033 | US 65014-T20P | 5,0 | M 5 | 14 | SDR T20P-T | HS 1030C | – | – | – |
| CO034 | US 65014-T20P | 5,0 | M 5 | 14 | SDR T20P-T | HS 1240C | CAC 160C | HSD 0825C | HXK 5 |
AC002 KS 1635 K.FMH32
