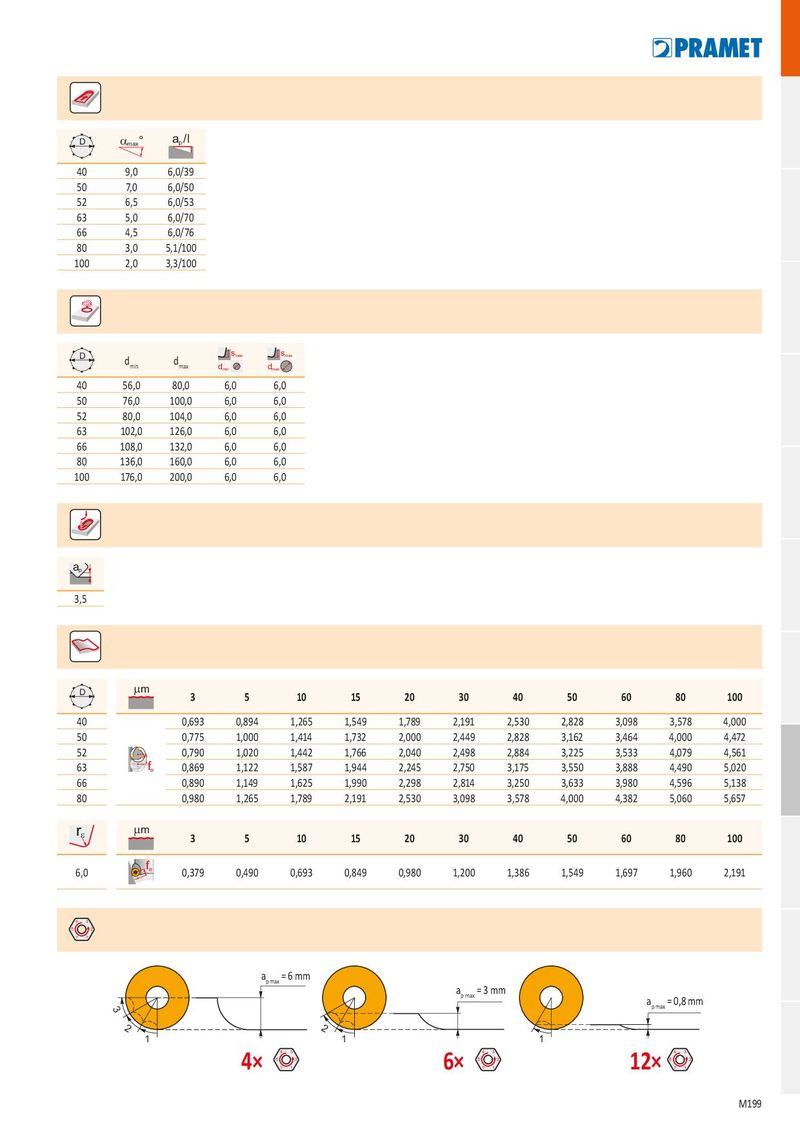

| D | amax° | ap/l |
| 40 | 9,0 | 6,0/39 |
| 50 | 7,0 | 6,0/50 |
| 52 | 6,5 | 6,0/53 |
| 63 | 5,0 | 6,0/70 |
| 66 | 4,5 | 6,0/76 |
| 80 | 3,0 | 5,1/100 |
| 100 | 2,0 | 3,3/100 |
| D | dmin | dmax | dmin smax | dmax smax |
| 40 | 56,0 | 80,0 | 6,0 | 6,0 |
| 50 | 76,0 | 100,0 | 6,0 | 6,0 |
| 52 | 80,0 | 104,0 | 6,0 | 6,0 |
| 63 | 102,0 | 126,0 | 6,0 | 6,0 |
| 66 | 108,0 | 132,0 | 6,0 | 6,0 |
| 80 | 136,0 | 160,0 | 6,0 | 6,0 |
| 100 | 176,0 | 200,0 | 6,0 | 6,0 |
a p 3,5
| D | m m | 3 | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 60 | 80 | 100 |
| 40 | 0,693 | 0,894 | 1,265 | 1,549 | 1,789 | 2,191 | 2,530 | 2,828 | 3,098 | 3,578 | 4,000 | |
| 50 | 0,775 | 1,000 | 1,414 | 1,732 | 2,000 | 2,449 | 2,828 | 3,162 | 3,464 | 4,000 | 4,472 | |
| 52 | 0,790 | 1,020 | 1,442 | 1,766 | 2,040 | 2,498 | 2,884 | 3,225 | 3,533 | 4,079 | 4,561 | |
| 63 | fe | 0,869 | 1,122 | 1,587 | 1,944 | 2,245 | 2,750 | 3,175 | 3,550 | 3,888 | 4,490 | 5,020 |
| 66 | 0,890 | 1,149 | 1,625 | 1,990 | 2,298 | 2,814 | 3,250 | 3,633 | 3,980 | 4,596 | 5,138 | |
| 80 | 0,980 | 1,265 | 1,789 | 2,191 | 2,530 | 3,098 | 3,578 | 4,000 | 4,382 | 5,060 | 5,657 | |
| re | m m | 3 | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 60 | 80 | 100 |
| 6,0 | fe | 0,379 | 0,490 | 0,693 | 0,849 | 0,980 | 1,200 | 1,386 | 1,549 | 1,697 | 1,960 | 2,191 |
4 3 5 2 ? 1
3
1
a = 6 mm
p max a = 3 mm
| p max | a | = 0,8 mm |
| p max |
4× 1 6× 1 12×
? 1 ? 1 ? 1
2 M199
