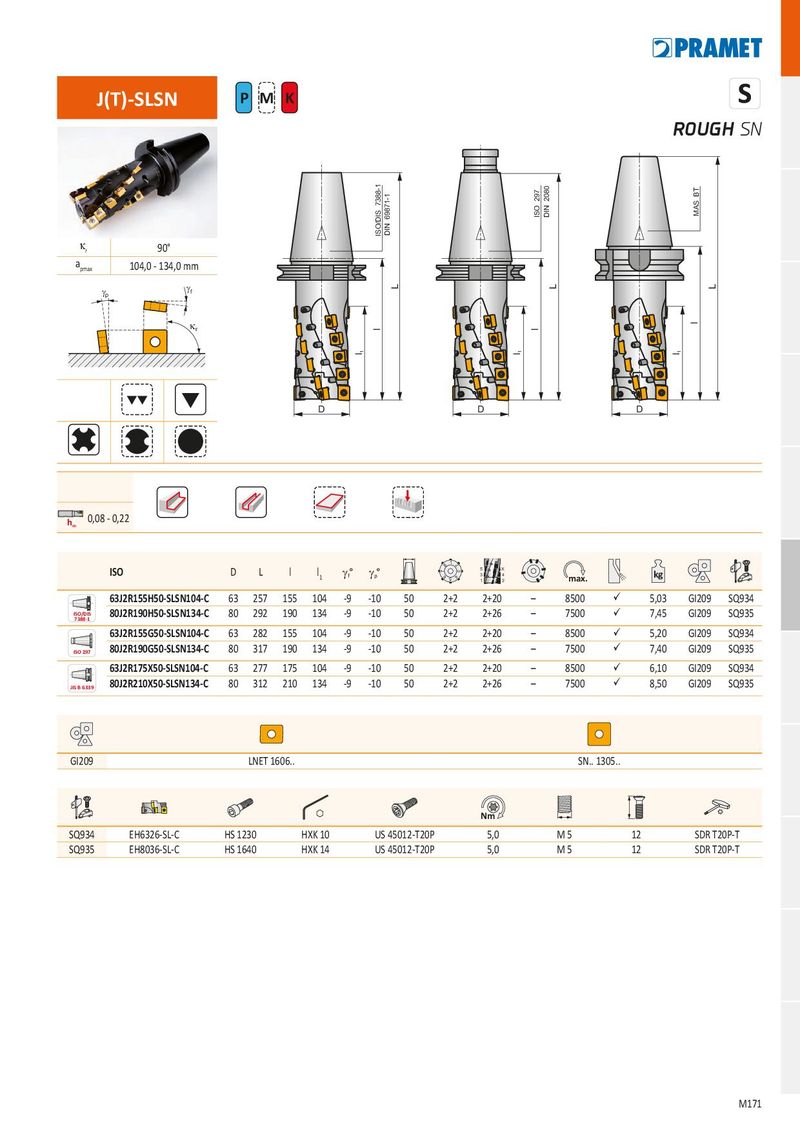

| kr 90° apmax 104,0 - 134,0 mm gp gf kr J(T)-SLSN | L l D ISO/DIS 7388-1 DIN 69871-1 l1 P M K | ISO 297 DIN 2080 D L l l1 L l D MAS BT l1 ROUG | HSN |
| hm 0,08 - 0,22 | | | |
| ISO | D L l l1 g° f g° p | 1 2 3 4 5 6 7 8 2 4 X 1 3 5 max. kg | |
| 63J2R155H50-SLSN104-C | 63 257 155 104 -9 -10 50 | 2+2 2+20 – 8500 ü 5,03 GI209 | SQ934 |
| ISO/DIS 7388-1 80J2R190H50-SLSN134-C | 80 292 190 134 -9 -10 50 | 2+2 2+26 – 7500 ü 7,45 GI209 | SQ935 |
| 63J2R155G50-SLSN104-C | 63 282 155 104 -9 -10 50 | 2+2 2+20 – 8500 ü 5,20 GI209 | SQ934 |
| ISO 297 80J2R190G50-SLSN134-C | 80 317 190 134 -9 -10 50 | 2+2 2+26 – 7500 ü 7,40 GI209 | SQ935 |
| 63J2R175X50-SLSN104-C | 63 277 175 104 -9 -10 50 | 2+2 2+20 – 8500 ü 6,10 GI209 | SQ934 |
| JIS B 6339 80J2R210X50-SLSN134-C | 80 312 210 134 -9 -10 50 | 2+2 2+26 – 7500 ü 8,50 GI209 | SQ935 |
| GI209 | LNET 1606.. | SN.. 1305.. | |
| | Nm | |
| SQ934 EH6326-SL-C | HS 1230 HXK 10 US 45012-T20P | 5,0 M 5 12 SDR T | 20P-T |
| SQ935 EH8036-SL-C | HS 1640 HXK 14 US 45012-T20P | 5,0 M 5 12 SDR T | 20P-T |
