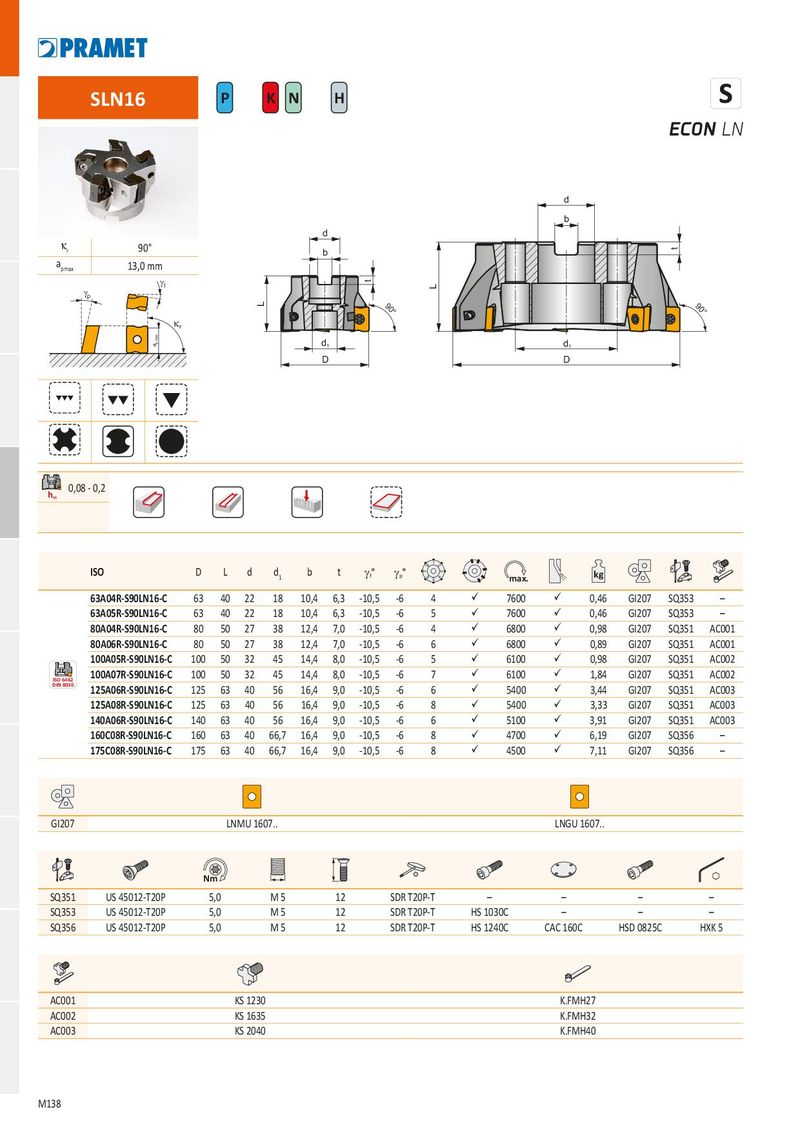

SLN16 P K N H
ECON LN
k 90° r a 13,0 mm pmax g g f p k r
d b d b
90° 90°
d d 1 1 D D
0,08 - 0,2 h m
| ISO | D | L | d | d1 | b | t | g° f | g° p 1 2 3 4 5 6 7 8 | max. | kg | ||||||
| 63A04R-S90LN16-C | 63 | 40 | 22 | 18 | 10,4 | 6,3 | -10,5 | -6 4 | ü | 7600 | ü | 0,46 | GI207 | SQ353 | – | |
| 63A05R-S90LN16-C | 63 | 40 | 22 | 18 | 10,4 | 6,3 | -10,5 | -6 5 | ü | 7600 | ü | 0,46 | GI207 | SQ353 | – | |
| 80A04R-S90LN16-C | 80 | 50 | 27 | 38 | 12,4 | 7,0 | -10,5 | -6 4 | ü | 6800 | ü | 0,98 | GI207 | SQ351 | AC001 | |
| 80A06R-S90LN16-C | 80 | 50 | 27 | 38 | 12,4 | 7,0 | -10,5 | -6 6 | ü | 6800 | ü | 0,89 | GI207 | SQ351 | AC001 | |
| 100A05R-S90LN16-C | 100 | 50 | 32 | 45 | 14,4 | 8,0 | -10,5 | -6 5 | ü | 6100 | ü | 0,98 | GI207 | SQ351 | AC002 | |
| ISO 6462 | 100A07R-S90LN16-C | 100 | 50 | 32 | 45 | 14,4 | 8,0 | -10,5 | -6 7 | ü | 6100 | ü | 1,84 | GI207 | SQ351 | AC002 |
| DIN 8030 | 125A06R-S90LN16-C | 125 | 63 | 40 | 56 | 16,4 | 9,0 | -10,5 | -6 6 | ü | 5400 | ü | 3,44 | GI207 | SQ351 | AC003 |
| 125A08R-S90LN16-C | 125 | 63 | 40 | 56 | 16,4 | 9,0 | -10,5 | -6 8 | ü | 5400 | ü | 3,33 | GI207 | SQ351 | AC003 | |
| 140A06R-S90LN16-C | 140 | 63 | 40 | 56 | 16,4 | 9,0 | -10,5 | -6 6 | ü | 5100 | ü | 3,91 | GI207 | SQ351 | AC003 | |
| 160C08R-S90LN16-C | 160 | 63 | 40 | 66,7 | 16,4 | 9,0 | -10,5 | -6 8 | ü | 4700 | ü | 6,19 | GI207 | SQ356 | – | |
| 175C08R-S90LN16-C | 175 | 63 | 40 | 66,7 | 16,4 | 9,0 | -10,5 | -6 8 | ü | 4500 | ü | 7,11 | GI207 | SQ356 | – |
| GI207 | LNM | U 1607.. | LNGU 1607 | .. | |||||
| Nm | |||||||||
| SQ351 | US 45012-T20P | 5,0 | M 5 | 12 | SDR T20P-T | – | – | – | – |
| SQ353 | US 45012-T20P | 5,0 | M 5 | 12 | SDR T20P-T | HS 1030C | – | – | – |
| SQ356 | US 45012-T20P | 5,0 | M 5 | 12 | SDR T20P-T | HS 1240C | CAC 160C | HSD 0825C | HXK 5 |
| AC001 | KS 1230 | K.FMH27 |
| AC002 | KS 1635 | K.FMH32 |
| AC003 | KS 2040 | K.FMH40 |
