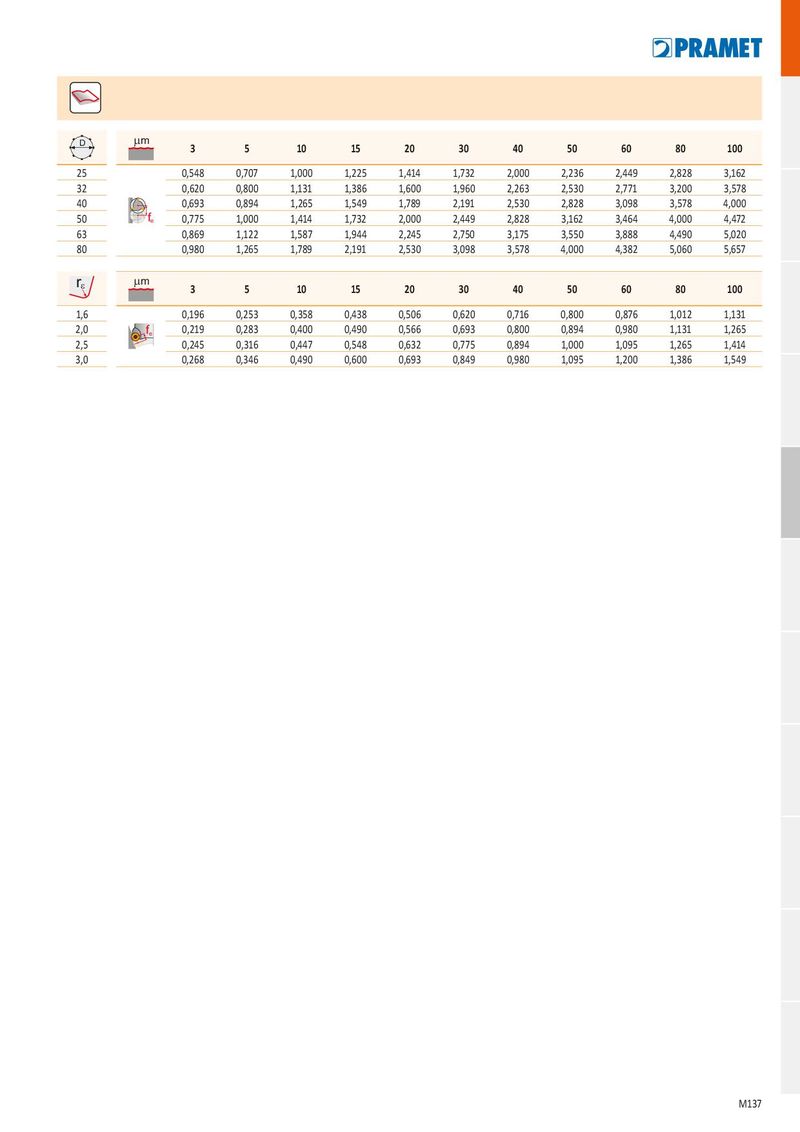

| D | m m | 3 | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 60 | 80 | 100 |
| 25 | 0,548 | 0,707 | 1,000 | 1,225 | 1,414 | 1,732 | 2,000 | 2,236 | 2,449 | 2,828 | 3,162 | |
| 32 | 0,620 | 0,800 | 1,131 | 1,386 | 1,600 | 1,960 | 2,263 | 2,530 | 2,771 | 3,200 | 3,578 | |
| 40 | 0,693 | 0,894 | 1,265 | 1,549 | 1,789 | 2,191 | 2,530 | 2,828 | 3,098 | 3,578 | 4,000 | |
| 50 | fe | 0,775 | 1,000 | 1,414 | 1,732 | 2,000 | 2,449 | 2,828 | 3,162 | 3,464 | 4,000 | 4,472 |
| 63 | 0,869 | 1,122 | 1,587 | 1,944 | 2,245 | 2,750 | 3,175 | 3,550 | 3,888 | 4,490 | 5,020 | |
| 80 | 0,980 | 1,265 | 1,789 | 2,191 | 2,530 | 3,098 | 3,578 | 4,000 | 4,382 | 5,060 | 5,657 | |
| re | m m | 3 | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 60 | 80 | 100 |
| 1,6 | 0,196 | 0,253 | 0,358 | 0,438 | 0,506 | 0,620 | 0,716 | 0,800 | 0,876 | 1,012 | 1,131 | |
| 2,0 | fe | 0,219 | 0,283 | 0,400 | 0,490 | 0,566 | 0,693 | 0,800 | 0,894 | 0,980 | 1,131 | 1,265 |
| 2,5 | 0,245 | 0,316 | 0,447 | 0,548 | 0,632 | 0,775 | 0,894 | 1,000 | 1,095 | 1,265 | 1,414 | |
| 3,0 | 0,268 | 0,346 | 0,490 | 0,600 | 0,693 | 0,849 | 0,980 | 1,095 | 1,200 | 1,386 | 1,549 |
