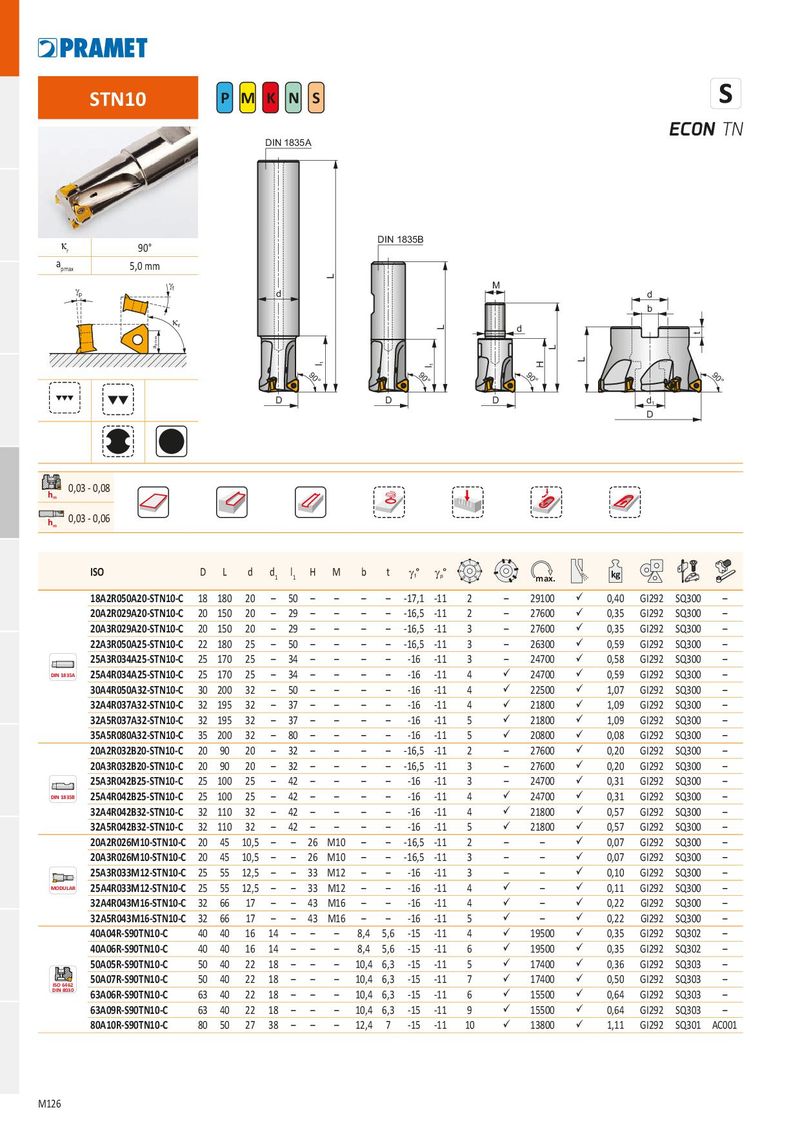

STN10 P M K N S
ECON TN DIN 1835A
k DIN 1835B 90° r a 5,0 mm pmax g M
g f d d
p b k r d
90° 90° 90° 90°
D D D d
1 D
0,03 - 0,08 h m 0,03 - 0,06 h m
| ISO | D | L | d | d1 | l1 | H | M | b | t | g° f | g° p | 1 2 3 4 5 6 7 8 | max. | kg | ||||||
| 18A2R050A20-STN10-C | 18 | 180 | 20 | – | 50 | – | – | – | – | -17,1 | -11 | 2 | – | 29100 | ü | 0,40 | GI292 | SQ300 | – | |
| 20A2R029A20-STN10-C | 20 | 150 | 20 | – | 29 | – | – | – | – | -16,5 | -11 | 2 | – | 27600 | ü | 0,35 | GI292 | SQ300 | – | |
| 20A3R029A20-STN10-C | 20 | 150 | 20 | – | 29 | – | – | – | – | -16,5 | -11 | 3 | – | 27600 | ü | 0,35 | GI292 | SQ300 | – | |
| 22A3R050A25-STN10-C | 22 | 180 | 25 | – | 50 | – | – | – | – | -16,5 | -11 | 3 | – | 26300 | ü | 0,59 | GI292 | SQ300 | – | |
| 25A3R034A25-STN10-C | 25 | 170 | 25 | – | 34 | – | – | – | – | -16 | -11 | 3 | – | 24700 | ü | 0,58 | GI292 | SQ300 | – | |
| DIN 1835A | 25A4R034A25-STN10-C | 25 | 170 | 25 | – | 34 | – | – | – | – | -16 | -11 | 4 | ü | 24700 | ü | 0,59 | GI292 | SQ300 | – |
| 30A4R050A32-STN10-C | 30 | 200 | 32 | – | 50 | – | – | – | – | -16 | -11 | 4 | ü | 22500 | ü | 1,07 | GI292 | SQ300 | – | |
| 32A4R037A32-STN10-C | 32 | 195 | 32 | – | 37 | – | – | – | – | -16 | -11 | 4 | ü | 21800 | ü | 1,09 | GI292 | SQ300 | – | |
| 32A5R037A32-STN10-C | 32 | 195 | 32 | – | 37 | – | – | – | – | -16 | -11 | 5 | ü | 21800 | ü | 1,09 | GI292 | SQ300 | – | |
| 35A5R080A32-STN10-C | 35 | 200 | 32 | – | 80 | – | – | – | – | -16 | -11 | 5 | ü | 20800 | ü | 0,08 | GI292 | SQ300 | – | |
| 20A2R032B20-STN10-C | 20 | 90 | 20 | – | 32 | – | – | – | – | -16,5 | -11 | 2 | – | 27600 | ü | 0,20 | GI292 | SQ300 | – | |
| 20A3R032B20-STN10-C | 20 | 90 | 20 | – | 32 | – | – | – | – | -16,5 | -11 | 3 | – | 27600 | ü | 0,20 | GI292 | SQ300 | – | |
| 25A3R042B25-STN10-C | 25 | 100 | 25 | – | 42 | – | – | – | – | -16 | -11 | 3 | – | 24700 | ü | 0,31 | GI292 | SQ300 | – | |
| DIN 1835B | 25A4R042B25-STN10-C | 25 | 100 | 25 | – | 42 | – | – | – | – | -16 | -11 | 4 | ü | 24700 | ü | 0,31 | GI292 | SQ300 | – |
| 32A4R042B32-STN10-C | 32 | 110 | 32 | – | 42 | – | – | – | – | -16 | -11 | 4 | ü | 21800 | ü | 0,57 | GI292 | SQ300 | – | |
| 32A5R042B32-STN10-C | 32 | 110 | 32 | – | 42 | – | – | – | – | -16 | -11 | 5 | ü | 21800 | ü | 0,57 | GI292 | SQ300 | – | |
| 20A2R026M10-STN10-C | 20 | 45 | 10,5 | – | – | 26 | M10 | – | – | -16,5 | -11 | 2 | – | – | ü | 0,07 | GI292 | SQ300 | – | |
| 20A3R026M10-STN10-C | 20 | 45 | 10,5 | – | – | 26 | M10 | – | – | -16,5 | -11 | 3 | – | – | ü | 0,07 | GI292 | SQ300 | – | |
| 25A3R033M12-STN10-C | 25 | 55 | 12,5 | – | – | 33 | M12 | – | – | -16 | -11 | 3 | – | – | ü | 0,10 | GI292 | SQ300 | – | |
| MODULAR | 25A4R033M12-STN10-C | 25 | 55 | 12,5 | – | – | 33 | M12 | – | – | -16 | -11 | 4 | ü | – | ü | 0,11 | GI292 | SQ300 | – |
| 32A4R043M16-STN10-C | 32 | 66 | 17 | – | – | 43 | M16 | – | – | -16 | -11 | 4 | ü | – | ü | 0,22 | GI292 | SQ300 | – | |
| 32A5R043M16-STN10-C | 32 | 66 | 17 | – | – | 43 | M16 | – | – | -16 | -11 | 5 | ü | – | ü | 0,22 | GI292 | SQ300 | – | |
| 40A04R-S90TN10-C | 40 | 40 | 16 | 14 | – | – | – | 8,4 | 5,6 | -15 | -11 | 4 | ü | 19500 | ü | 0,35 | GI292 | SQ302 | – | |
| 40A06R-S90TN10-C | 40 | 40 | 16 | 14 | – | – | – | 8,4 | 5,6 | -15 | -11 | 6 | ü | 19500 | ü | 0,35 | GI292 | SQ302 | – | |
| 50A05R-S90TN10-C | 50 | 40 | 22 | 18 | – | – | – | 10,4 | 6,3 | -15 | -11 | 5 | ü | 17400 | ü | 0,36 | GI292 | SQ303 | – | |
| ISO 6462 | 50A07R-S90TN10-C | 50 | 40 | 22 | 18 | – | – | – | 10,4 | 6,3 | -15 | -11 | 7 | ü | 17400 | ü | 0,50 | GI292 | SQ303 | – |
| DIN 8030 | 63A06R-S90TN10-C | 63 | 40 | 22 | 18 | – | – | – | 10,4 | 6,3 | -15 | -11 | 6 | ü | 15500 | ü | 0,64 | GI292 | SQ303 | – |
| 63A09R-S90TN10-C | 63 | 40 | 22 | 18 | – | – | – | 10,4 | 6,3 | -15 | -11 | 9 | ü | 15500 | ü | 0,64 | GI292 | SQ303 | – | |
| 80A10R-S90TN10-C | 80 | 50 | 27 | 38 | – | – | – | 12,4 | 7 | -15 | -11 | 10 | ü | 13800 | ü | 1,11 | GI292 | SQ301 | AC001 |
