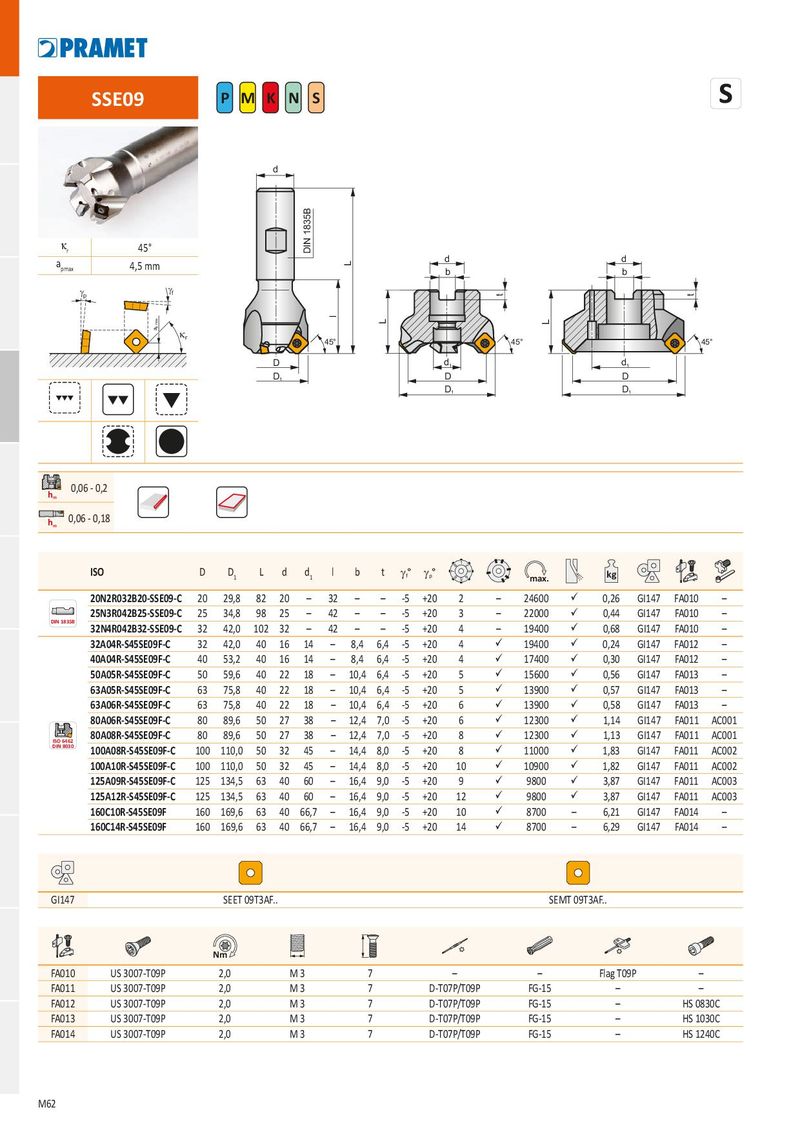

SSE09 P M K N S
d
k 45° r a 4,5 mm pmax g g p f
k r
d d b b
45° 45° 45°
| D | d | d |
| 1 | 1 | |
| D | D | D |
1 D D 1 1
0,06 - 0,2 h m 0,06 - 0,18 h m
| ISO | D | D1 | L | d | d1 | l | b | t | g° f | g° p | 1 2 3 4 5 6 7 8 | max. | kg | ||||||
| 20N2R032B20-SSE09-C | 20 | 29,8 | 82 | 20 | – | 32 | – | – | -5 | +20 | 2 | – | 24600 | ü | 0,26 | GI147 | FA010 | – | |
| 25N3R042B25-SSE09-C | 25 | 34,8 | 98 | 25 | – | 42 | – | – | -5 | +20 | 3 | – | 22000 | ü | 0,44 | GI147 | FA010 | – | |
| DIN 1835B | 32N4R042B32-SSE09-C | 32 | 42,0 | 102 | 32 | – | 42 | – | – | -5 | +20 | 4 | – | 19400 | ü | 0,68 | GI147 | FA010 | – |
| 32A04R-S45SE09F-C | 32 | 42,0 | 40 | 16 | 14 | – | 8,4 | 6,4 | -5 | +20 | 4 | ü | 19400 | ü | 0,24 | GI147 | FA012 | – | |
| 40A04R-S45SE09F-C | 40 | 53,2 | 40 | 16 | 14 | – | 8,4 | 6,4 | -5 | +20 | 4 | ü | 17400 | ü | 0,30 | GI147 | FA012 | – | |
| 50A05R-S45SE09F-C | 50 | 59,6 | 40 | 22 | 18 | – | 10,4 | 6,4 | -5 | +20 | 5 | ü | 15600 | ü | 0,56 | GI147 | FA013 | – | |
| 63A05R-S45SE09F-C | 63 | 75,8 | 40 | 22 | 18 | – | 10,4 | 6,4 | -5 | +20 | 5 | ü | 13900 | ü | 0,57 | GI147 | FA013 | – | |
| 63A06R-S45SE09F-C | 63 | 75,8 | 40 | 22 | 18 | – | 10,4 | 6,4 | -5 | +20 | 6 | ü | 13900 | ü | 0,58 | GI147 | FA013 | – | |
| 80A06R-S45SE09F-C | 80 | 89,6 | 50 | 27 | 38 | – | 12,4 | 7,0 | -5 | +20 | 6 | ü | 12300 | ü | 1,14 | GI147 | FA011 | AC001 | |
| ISO 6462 | 80A08R-S45SE09F-C | 80 | 89,6 | 50 | 27 | 38 | – | 12,4 | 7,0 | -5 | +20 | 8 | ü | 12300 | ü | 1,13 | GI147 | FA011 | AC001 |
| DIN 8030 | 100A08R-S45SE09F-C | 100 | 110,0 | 50 | 32 | 45 | – | 14,4 | 8,0 | -5 | +20 | 8 | ü | 11000 | ü | 1,83 | GI147 | FA011 | AC002 |
| 100A10R-S45SE09F-C | 100 | 110,0 | 50 | 32 | 45 | – | 14,4 | 8,0 | -5 | +20 | 10 | ü | 10900 | ü | 1,82 | GI147 | FA011 | AC002 | |
| 125A09R-S45SE09F-C | 125 | 134,5 | 63 | 40 | 60 | – | 16,4 | 9,0 | -5 | +20 | 9 | ü | 9800 | ü | 3,87 | GI147 | FA011 | AC003 | |
| 125A12R-S45SE09F-C | 125 | 134,5 | 63 | 40 | 60 | – | 16,4 | 9,0 | -5 | +20 | 12 | ü | 9800 | ü | 3,87 | GI147 | FA011 | AC003 | |
| 160C10R-S45SE09F | 160 | 169,6 | 63 | 40 | 66,7 | – | 16,4 | 9,0 | -5 | +20 | 10 | ü | 8700 | – | 6,21 | GI147 | FA014 | – | |
| 160C14R-S45SE09F | 160 | 169,6 | 63 | 40 | 66,7 | – | 16,4 | 9,0 | -5 | +20 | 14 | ü | 8700 | – | 6,29 | GI147 | FA014 | – |
GI147 SEET 09T3AF.. SEMT 09T3AF..
| Nm | ||||||||
| FA010 | US 3007-T09P | 2,0 | M 3 | 7 | – | – | FlagT09P | – |
| FA011 | US 3007-T09P | 2,0 | M 3 | 7 | D-T07P/T09P | FG-15 | – | – |
| FA012 | US 3007-T09P | 2,0 | M 3 | 7 | D-T07P/T09P | FG-15 | – | HS 0830C |
| FA013 | US 3007-T09P | 2,0 | M 3 | 7 | D-T07P/T09P | FG-15 | – | HS 1030C |
| FA014 | US 3007-T09P | 2,0 | M 3 | 7 | D-T07P/T09P | FG-15 | – | HS 1240C |
