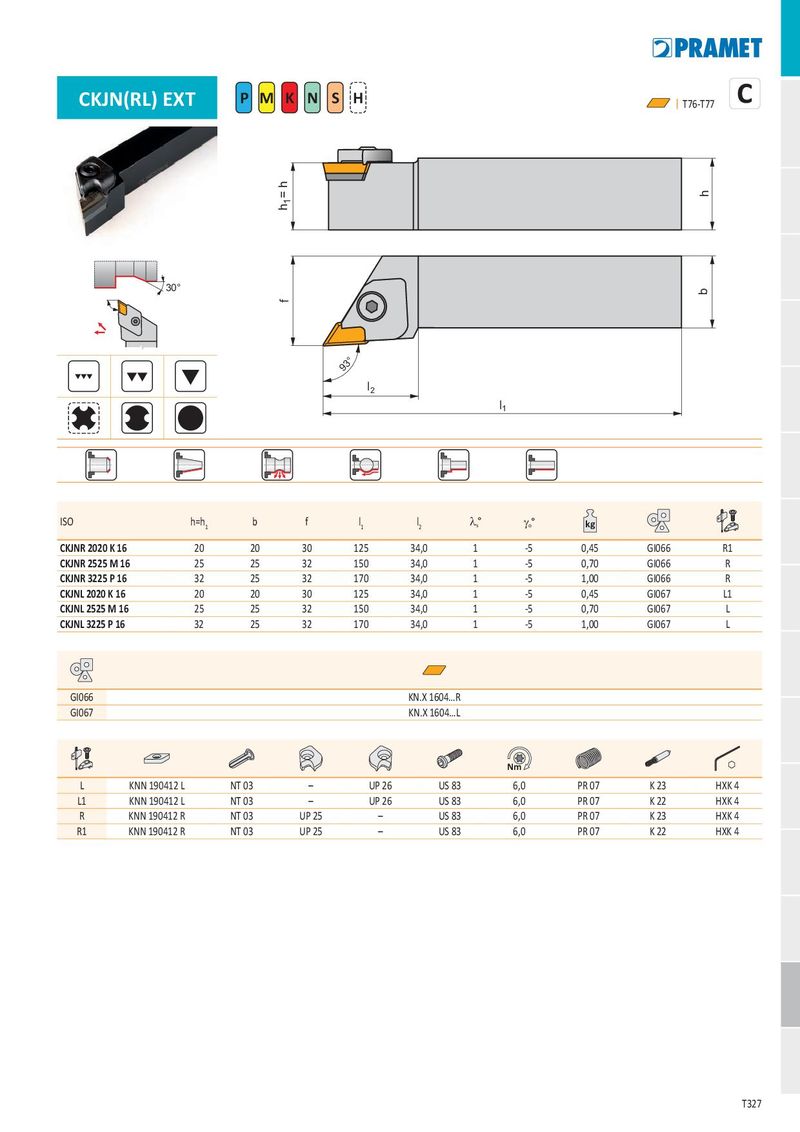

| CKJN(RL) | EXT | P M K N S H | I | T76-T77 | |
| h = h 1 | h | ||||
| 30° | f | b | |||
| l2 93° | |||||
| l1 | |||||
| ISO | h=h1 | b f l1 l2 | ls° go° kg | ||
| CKJNR 2020 K 16 | 20 | 20 30 125 34,0 | 1 -5 0,45 | GI066 | R1 |
| CKJNR 2525 M 16 | 25 | 25 32 150 34,0 | 1 -5 0,70 | GI066 | R |
| CKJNR 3225 P 16 | 32 | 25 32 170 34,0 | 1 -5 1,00 | GI066 | R |
| CKJNL 2020 K 16 | 20 | 20 30 125 34,0 | 1 -5 0,45 | GI067 | L1 |
| CKJNL 2525 M 16 | 25 | 25 32 150 34,0 | 1 -5 0,70 | GI067 | L |
| CKJNL 3225 P 16 | 32 | 25 32 170 34,0 | 1 -5 1,00 | GI067 | L |
| GI066 | K | N.X 1604…R | |||||||
| GI067 | K | N.X 1604…L | |||||||
| Nm | |||||||||
| L | KNN 190412 L | NT 03 | – | UP 26 | US 83 | 6,0 | PR 07 | K 23 | HXK 4 |
| L1 | KNN 190412 L | NT 03 | – | UP 26 | US 83 | 6,0 | PR 07 | K 22 | HXK 4 |
| R | KNN 190412 R | NT 03 | UP 25 | – | US 83 | 6,0 | PR 07 | K 23 | HXK 4 |
| R1 | KNN 190412 R | NT 03 | UP 25 | – | US 83 | 6,0 | PR 07 | K 22 | HXK 4 |
