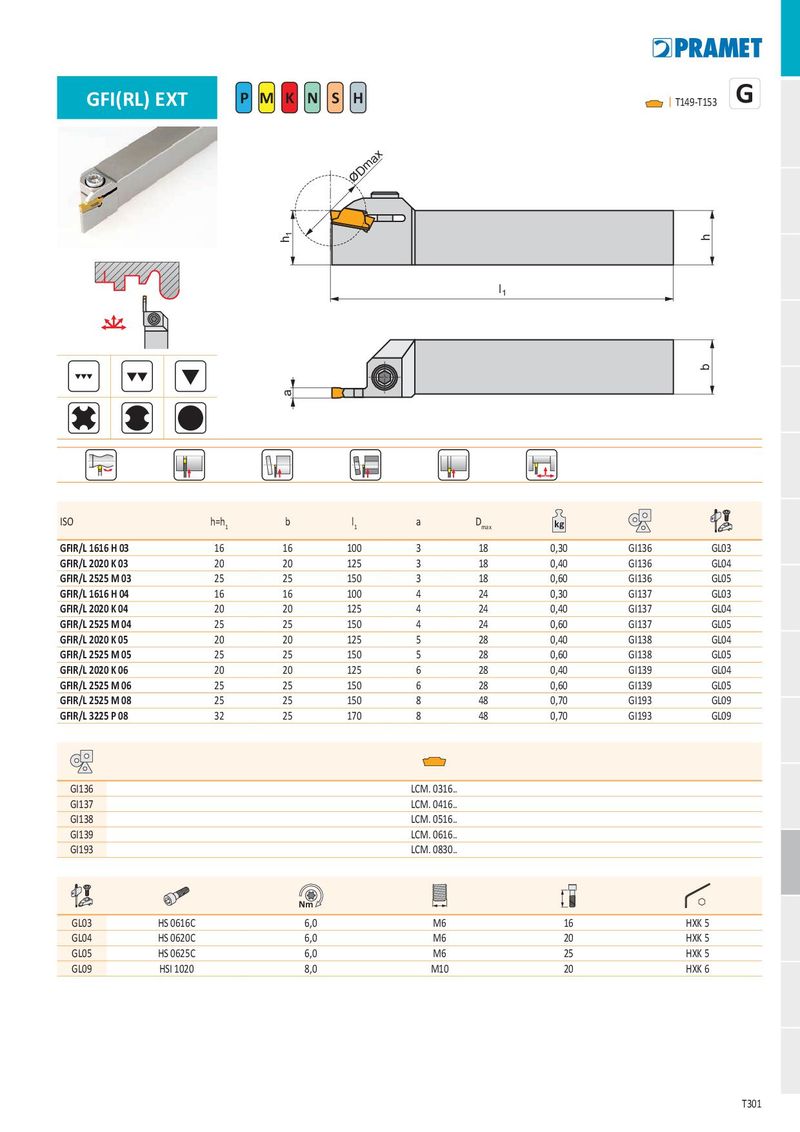

Общий каталог Dormer Pramet 2017 - страница 306

GFI(RL) EXT P M K N S H G I T149-T153 Dmax 1 h h l 1 b a ISO h=h 1 b l 1 a D max kg GFIR/L 1616 H 03 16 16 100 3 18 0,30 GI136 GL03 GFIR/L 2020 K 03 20 20 125 3 18 0,40 GI136 GL04 GFIR/L 2525 M 03 25 25 150 3 18 0,60 GI136 GL05 GFIR/L 1616 H 04 16 16 100 4 24 0,30 GI137 GL03 GFIR/L 2020 K 04 20 20 125 4 24 0,40 GI137 GL04 GFIR/L 2525 M 04 25 25 150 4 24 0,60 GI137 GL05 GFIR/L 2020 K 05 20 20 125 5 28 0,40 GI138 GL04 GFIR/L 2525 M 05 25 25 150 5 28 0,60 GI138 GL05 GFIR/L 2020 K 06 20 20 125 6 28 0,40 GI139 GL04 GFIR/L 2525 M 06 25 25 150 6 28 0,60 GI139 GL05 GFIR/L 2525 M 08 25 25 150 8 48 0,70 GI193 GL09 GFIR/L 3225 P 08 32 25 170 8 48 0,70 GI193 GL09 GI136 LCM. 0316.. GI137 LCM. 0416.. GI138 LCM. 0516.. GI139 LCM. 0616.. GI193 LCM. 0830.. Nm GL03 HS 0616C 6,0 M6 16 HXK 5 GL04 HS 0620C 6,0 M6 20 HXK 5 GL05 HS 0625C 6,0 M6 25 HXK 5 GL09 HSI 1020 8,0 M10 20 HXK 6 T301
