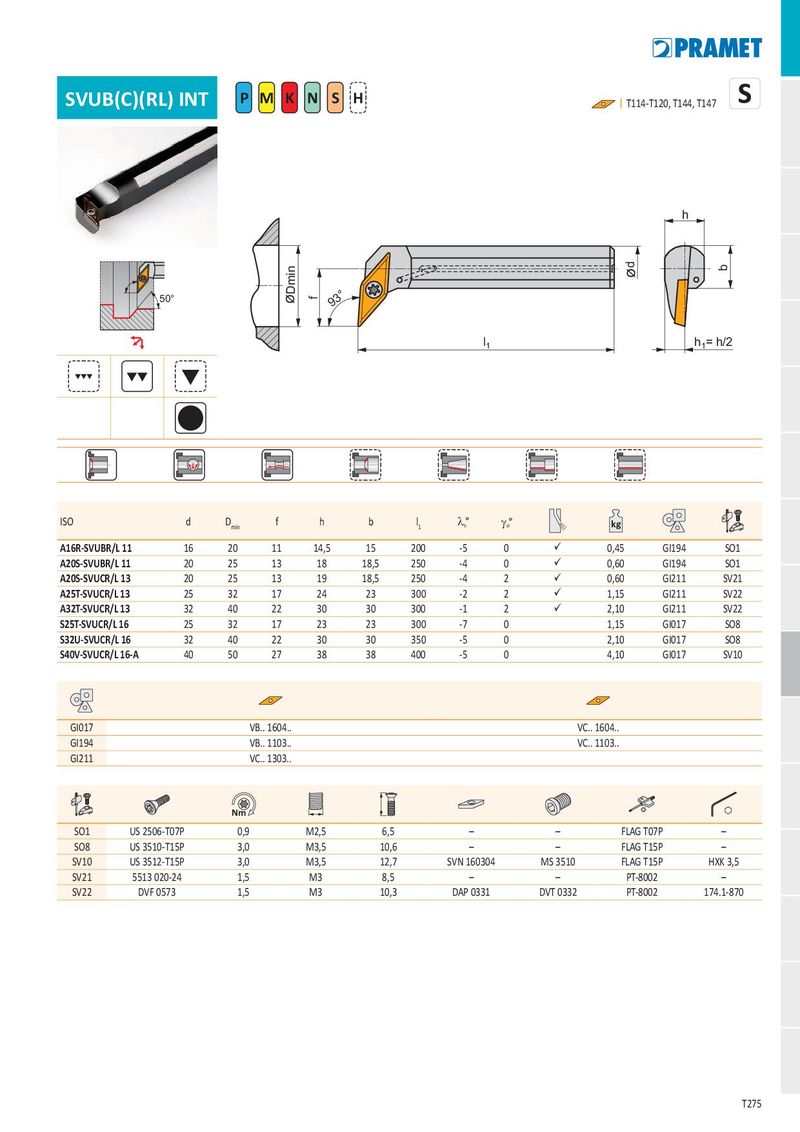

SVUB(C)(RL) INT P M K N S H I
T114-T120, T144, T147
h
50° 93° l h = h/2 1 1
| ISO | d | Dmin | f | h | b | l1 | ls° | go° | kg | |||
| A16R-SVUBR/L 11 | 16 | 20 | 11 | 14,5 | 15 | 200 | -5 | 0 | ü | 0,45 | GI194 | SO1 |
| A20S-SVUBR/L 11 | 20 | 25 | 13 | 18 | 18,5 | 250 | -4 | 0 | ü | 0,60 | GI194 | SO1 |
| A20S-SVUCR/L 13 | 20 | 25 | 13 | 19 | 18,5 | 250 | -4 | 2 | ü | 0,60 | GI211 | SV21 |
| A25T-SVUCR/L 13 | 25 | 32 | 17 | 24 | 23 | 300 | -2 | 2 | ü | 1,15 | GI211 | SV22 |
| A32T-SVUCR/L 13 | 32 | 40 | 22 | 30 | 30 | 300 | -1 | 2 | ü | 2,10 | GI211 | SV22 |
| S25T-SVUCR/L 16 | 25 | 32 | 17 | 23 | 23 | 300 | -7 | 0 | 1,15 | GI017 | SO8 | |
| S32U-SVUCR/L 16 | 32 | 40 | 22 | 30 | 30 | 350 | -5 | 0 | 2,10 | GI017 | SO8 | |
| S40V-SVUCR/L 16-A | 40 | 50 | 27 | 38 | 38 | 400 | -5 | 0 | 4,10 | GI017 | SV10 |
| GI017 | VB.. 1604.. | VC.. 1 | 604.. | |||||
| GI194 | VB.. 1103.. | VC.. 1 | 103.. | |||||
| GI211 | VC.. 1303.. | |||||||
| Nm | ||||||||
| SO1 | US 2506-T07P | 0,9 | M2,5 | 6,5 | – | – | FLAG T07P | – |
| SO8 | US 3510-T15P | 3,0 | M3,5 | 10,6 | – | – | FLAG T15P | – |
| SV10 | US 3512-T15P | 3,0 | M3,5 | 12,7 | SVN 160304 | MS 3510 | FLAG T15P | HXK 3,5 |
| SV21 | 5513 020-24 | 1,5 | M3 | 8,5 | – | – | PT-8002 | – |
| SV22 | DVF 0573 | 1,5 | M3 | 10,3 | DAP 0331 | DVT 0332 | PT-8002 | 174.1-870 |
