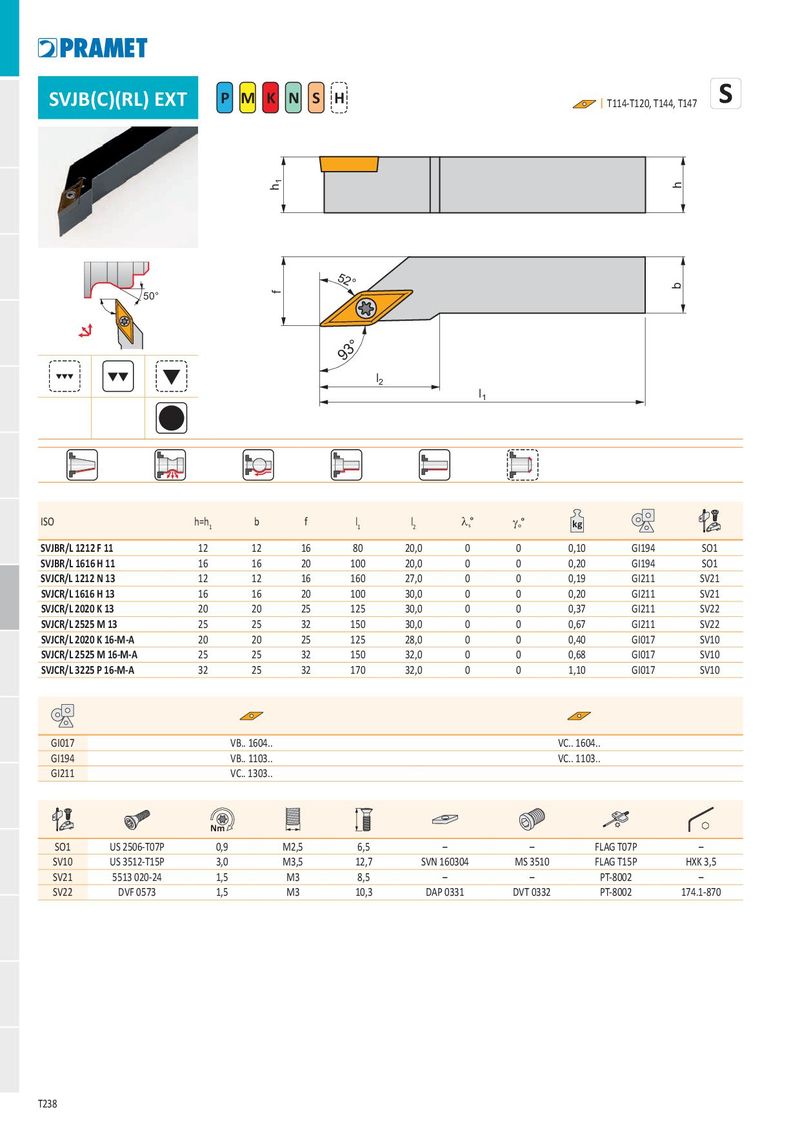

SVJB(C)(RL) EXT P M K N S H I
T114-T120, T144, T147
52° 50°
93°
l 2
l 1
| ISO | h=h1 | b | f | l1 | l2 | ls° | go° | kg | ||
| SVJBR/L 1212 F 11 | 12 | 12 | 16 | 80 | 20,0 | 0 | 0 | 0,10 | GI194 | SO1 |
| SVJBR/L 1616 H 11 | 16 | 16 | 20 | 100 | 20,0 | 0 | 0 | 0,20 | GI194 | SO1 |
| SVJCR/L 1212 N 13 | 12 | 12 | 16 | 160 | 27,0 | 0 | 0 | 0,19 | GI211 | SV21 |
| SVJCR/L 1616 H 13 | 16 | 16 | 20 | 100 | 30,0 | 0 | 0 | 0,20 | GI211 | SV21 |
| SVJCR/L 2020 K 13 | 20 | 20 | 25 | 125 | 30,0 | 0 | 0 | 0,37 | GI211 | SV22 |
| SVJCR/L 2525 M 13 | 25 | 25 | 32 | 150 | 30,0 | 0 | 0 | 0,67 | GI211 | SV22 |
| SVJCR/L 2020 K 16-M-A | 20 | 20 | 25 | 125 | 28,0 | 0 | 0 | 0,40 | GI017 | SV10 |
| SVJCR/L 2525 M 16-M-A | 25 | 25 | 32 | 150 | 32,0 | 0 | 0 | 0,68 | GI017 | SV10 |
| SVJCR/L 3225 P 16-M-A | 32 | 25 | 32 | 170 | 32,0 | 0 | 0 | 1,10 | GI017 | SV10 |
| GI017 | VB.. 16 | 04.. | VC. | . 1604.. | ||||
| GI194 | VB.. 11 | 03.. | VC. | . 1103.. | ||||
| GI211 | VC.. 13 | 03.. | ||||||
| Nm | ||||||||
| SO1 | US 2506-T07P | 0,9 | M2,5 | 6,5 | – | – | FLAG T07P | – |
| SV10 | US 3512-T15P | 3,0 | M3,5 | 12,7 | SVN 160304 | MS 3510 | FLAG T15P | HXK 3,5 |
| SV21 | 5513 020-24 | 1,5 | M3 | 8,5 | – | – | PT-8002 | – |
| SV22 | DVF 0573 | 1,5 | M3 | 10,3 | DAP 0331 | DVT 0332 | PT-8002 | 174.1-870 |
