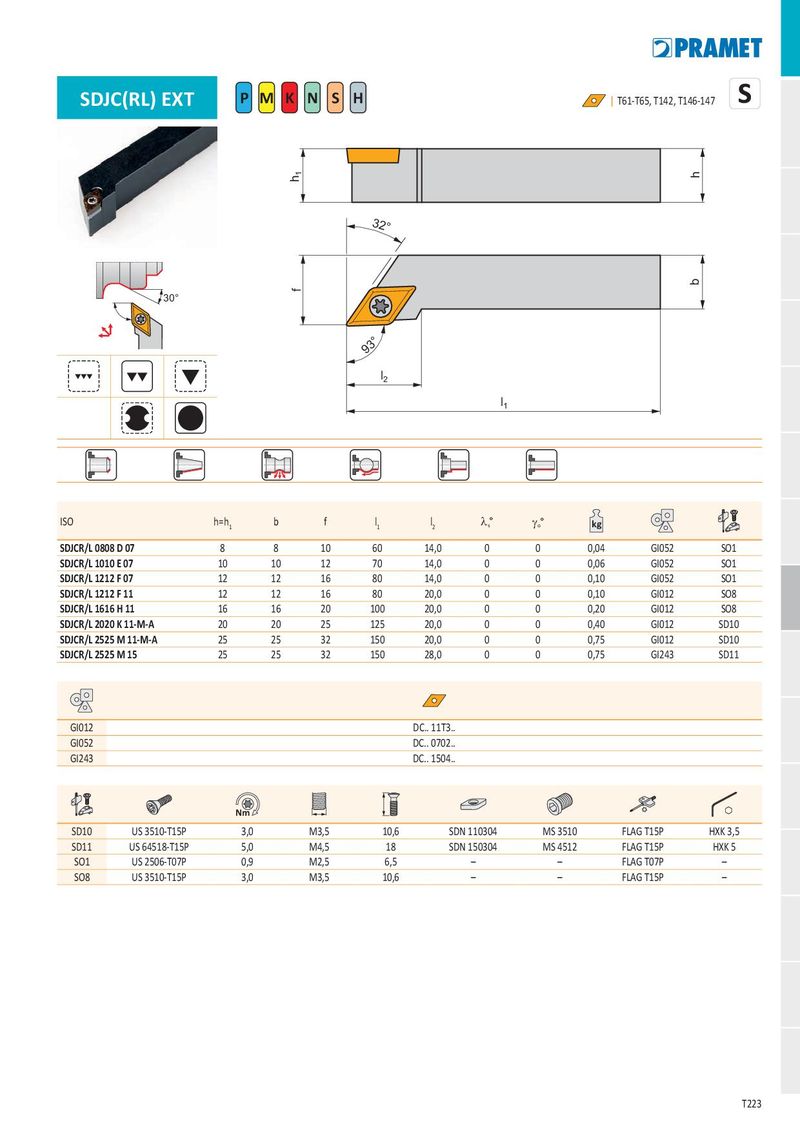

SDJC(RL) EXT P M K N S H I
T61-T65, T142, T146-147
| 32° h1 | h | ||||
| 30° | 93° f | b | |||
| l2 | |||||
| l1 | |||||
| ISO h=h1 | b f l1 l2 ls° | go° | kg | ||
| SDJCR/L 0808 D 07 8 | 8 10 60 14,0 0 | 0 | 0,04 | GI052 | SO1 |
| SDJCR/L 1010 E 07 10 | 10 12 70 14,0 0 | 0 | 0,06 | GI052 | SO1 |
| SDJCR/L 1212 F 07 12 | 12 16 80 14,0 0 | 0 | 0,10 | GI052 | SO1 |
| SDJCR/L 1212 F 11 12 | 12 16 80 20,0 0 | 0 | 0,10 | GI012 | SO8 |
| SDJCR/L 1616 H 11 16 | 16 20 100 20,0 0 | 0 | 0,20 | GI012 | SO8 |
| SDJCR/L 2020 K 11-M-A 20 | 20 25 125 20,0 0 | 0 | 0,40 | GI012 | SD10 |
| SDJCR/L 2525 M 11-M-A 25 | 25 32 150 20,0 0 | 0 | 0,75 | GI012 | SD10 |
| SDJCR/L 2525 M 15 25 | 25 32 150 28,0 0 | 0 | 0,75 | GI243 | SD11 |
| GI012 | DC | .. 11T3.. | ||||||
| GI052 | DC | .. 0702.. | ||||||
| GI243 | DC | .. 1504.. | ||||||
| Nm | ||||||||
| SD10 | US 3510-T15P | 3,0 | M3,5 | 10,6 | SDN 110304 | MS 3510 | FLAG T15P | HXK 3,5 |
| SD11 | US 64518-T15P | 5,0 | M4,5 | 18 | SDN 150304 | MS 4512 | FLAG T15P | HXK 5 |
| SO1 | US 2506-T07P | 0,9 | M2,5 | 6,5 | – | – | FLAG T07P | – |
| SO8 | US 3510-T15P | 3,0 | M3,5 | 10,6 | – | – | FLAG T15P | – |
