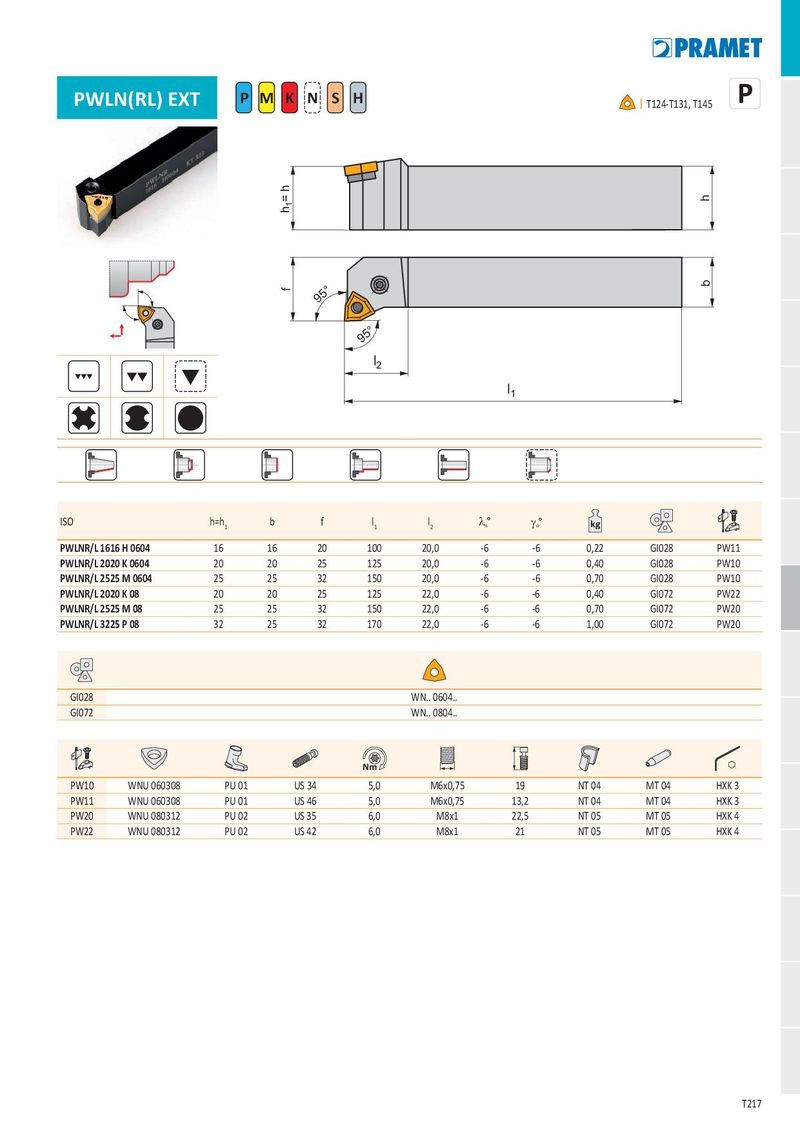

| PWLN(RL) EXT | P M K | N S H | I T124-T131 | , T145 | |
| h1= h | h | ||||
| f | 95° 95° | b | |||
| l2 | l1 | ||||
| ISO h=h1 | b | f l1 | l2 ls° go° kg | ||
| PWLNR/L 1616 H 0604 16 | 16 | 20 100 | 20,0 -6 -6 0,22 | GI028 | PW11 |
| PWLNR/L 2020 K 0604 20 | 20 | 25 125 | 20,0 -6 -6 0,40 | GI028 | PW10 |
| PWLNR/L 2525 M 0604 25 | 25 | 32 150 | 20,0 -6 -6 0,70 | GI028 | PW10 |
| PWLNR/L 2020 K 08 20 | 20 | 25 125 | 22,0 -6 -6 0,40 | GI072 | PW22 |
| PWLNR/L 2525 M 08 25 | 25 | 32 150 | 22,0 -6 -6 0,70 | GI072 | PW20 |
| PWLNR/L 3225 P 08 32 | 25 | 32 170 | 22,0 -6 -6 1,00 | GI072 | PW20 |
| GI028 | WN.. 0604.. | ||||||||
| GI072 | WN.. 0804.. | ||||||||
| Nm | |||||||||
| PW10 | WNU 060308 | PU 01 | US 34 | 5,0 | M6x0,75 | 19 | NT 04 | MT 04 | HXK 3 |
| PW11 | WNU 060308 | PU 01 | US 46 | 5,0 | M6x0,75 | 13,2 | NT 04 | MT 04 | HXK 3 |
| PW20 | WNU 080312 | PU 02 | US 35 | 6,0 | M8x1 | 22,5 | NT 05 | MT 05 | HXK 4 |
| PW22 | WNU 080312 | PU 02 | US 42 | 6,0 | M8x1 | 21 | NT 05 | MT 05 | HXK 4 |
