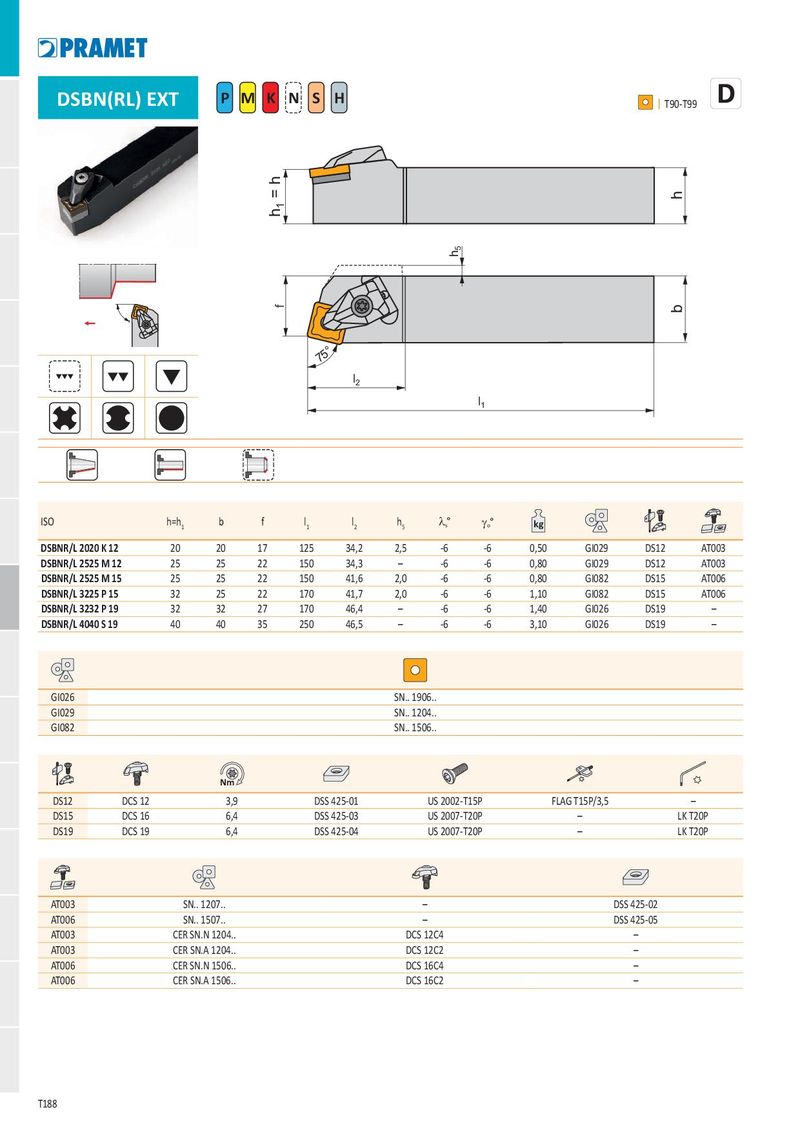

DSBN(RL) EXT P M K N S H I
T90-T99
75° l 2
l 1
| ISO | h=h1 | b | f | l1 | l2 | h5 | ls° | go° | kg | |||
| DSBNR/L 2020 K 12 | 20 | 20 | 17 | 125 | 34,2 | 2,5 | -6 | -6 | 0,50 | GI029 | DS12 | AT003 |
| DSBNR/L 2525 M 12 | 25 | 25 | 22 | 150 | 34,3 | – | -6 | -6 | 0,80 | GI029 | DS12 | AT003 |
| DSBNR/L 2525 M 15 | 25 | 25 | 22 | 150 | 41,6 | 2,0 | -6 | -6 | 0,80 | GI082 | DS15 | AT006 |
| DSBNR/L 3225 P 15 | 32 | 25 | 22 | 170 | 41,7 | 2,0 | -6 | -6 | 1,10 | GI082 | DS15 | AT006 |
| DSBNR/L 3232 P 19 | 32 | 32 | 27 | 170 | 46,4 | – | -6 | -6 | 1,40 | GI026 | DS19 | – |
| DSBNR/L 4040 S 19 | 40 | 40 | 35 | 250 | 46,5 | – | -6 | -6 | 3,10 | GI026 | DS19 | – |
| GI026 | SN.. 1906.. |
| GI029 | SN.. 1204.. |
| GI082 | SN.. 1506.. |
| Nm | ||||||
| DS12 | DCS 12 | 3,9 | DSS 425-01 | US 2002-T15P | FLAG T15P/3,5 | – |
| DS15 | DCS 16 | 6,4 | DSS 425-03 | US 2007-T20P | – | LK T20P |
| DS19 | DCS 19 | 6,4 | DSS 425-04 | US 2007-T20P | – | LK T20P |
| AT003 | SN.. 1207.. | – | DSS 425-02 |
| AT006 | SN.. 1507.. | – | DSS 425-05 |
| AT003 | CER SN.N 1204.. | DCS 12C4 | – |
| AT003 | CER SN.A 1204.. | DCS 12C2 | – |
| AT006 | CER SN.N 1506.. | DCS 16C4 | – |
| AT006 | CER SN.A 1506.. | DCS 16C2 | – |
