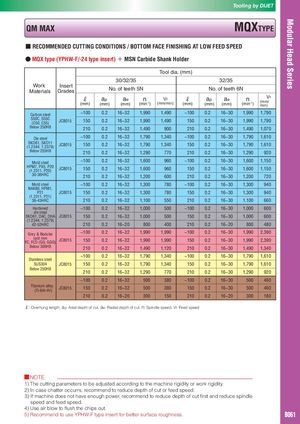

■ RECOMMENDED CUTTING CONDITIONS / BOTTOM FACE FINISHING AT LOW FEED SPEED

MQX type (YPHW-F/-24 type insert) ＋ MSN Carbide Shank Holder

				30/32/3	5	Tool dia	.(mm)		32/35
Work Materials	Insert Grades		N	o. of teeth	5N			No.	of teeth	6N	Vf
		ℓ (mm)	ap (mm)	ae (mm)	n (min-1)	Vf (mm/min)	ℓ (mm)	ap (mm)	ae (mm)	n (min-1)	(mm/ min)
Carbon steel		~100	0.2	16~32	1,990	1,490	~100	0.2	16~30	1,990	1,790
S50C, S55C (C50, C55)	JC8015	150	0.2	16~32	1,990	1,490	150	0.2	16~30	1,990	1,790
Below 250HB		210	0.2	16~32	1,490	900	210	0.2	16~30	1,490	1,070
Die steel		~100	0.2	16~32	1,790	1,340	~100	0.2	16~30	1,790	1,610
SKD61, SKD11 (1.2344, 1.2379)	JC8015	150	0.2	16~32	1,790	1,340	150	0.2	16~30	1,790	1,610
Below 255HB		210	0.2	16~32	1,290	770	210	0.2	16~30	1,290	920
Mold steel		~100	0.2	16~32	1,600	960	~100	0.2	16~30	1,600	1,150
HPM7, PX5, P20 (1.2311, P20)	JC8015	150	0.2	16~32	1,600	960	150	0.2	16~30	1,600	1,150
30-36HRC		210	0.2	16~32	1,200	600	210	0.2	16~30	1,200	720
Mold steel NAK HPM1		~100	0.2	16~32	1,300	780	~100	0.2	16~30	1,300	940
80, , P21 12311 P21	JC8015	150	0.2	16~32	1,300	780	150	0.2	16~30	1,300	940
(., ) 38-43HRC		210	0.2	16~32	1,100	550	210	0.2	16~30	1,100	660
Hardened di tl		~100	0.2	16~32	1,000	500	~100	0.2	16~30	1,000	600
e see SKD61, DAC, DHA 12344 12379	JC8015	150	0.2	16~32	1,000	500	150	0.2	16~30	1,000	600
(., .) 42-52HRC		210	0.2	16~20	800	400	210	0.2	16~20	800	480
Grey & Nodular		~100	0.2	16~32	1,990	1,990	~100	0.2	16~30	1,990	2,390
cast iron FC, FCD (GG, GGG)	JC8015	150	0.2	16~32	1,990	1,990	150	0.2	16~30	1,990	2,390
Below 300HB		210	0.2	16~32	1,490	1,120	210	0.2	16~30	1,490	1,340
Stainless steel		~100	0.2	16~32	1,790	1,340	~100	0.2	16~30	1,790	1,610
SUS304	JC8015	150	0.2	16~32	1,790	1,340	150	0.2	16~30	1,790	1,610
Below 250HB		210	0.2	16~32	1,290	770	210	0.2	16~30	1,290	920
		~100	0.2	16~32	500	380	~100	0.2	16~30	500	460
Titanium alloy (Ti-6Al-4V)	JC8015	150	0.2	16~32	500	380	150	0.2	16~30	500	460
		210	0.2	16~20	300	150	210	0.2	16~20	300	180

ℓ: Overhung length, a Axial depth of cut, a : Radial depth of cut, n: Spindle speed, V : Feed speed
