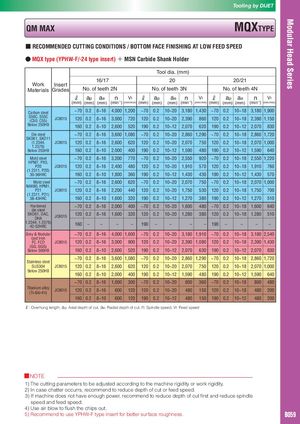

■ RECOMMENDED CUTTING CONDITIONS / BOTTOM FACE FINISHING AT LOW FEED SPEED

MQX type (YPHW-F/-24 type insert) ＋ MSN Carbide Shank Holder

Work	Insert			16/17				To	ol dia.( 20	mm)				20/21
Materials	Grades		No. o	f teeth	2N			No.	of teeth	3N			No.	of teet	h4N
		ℓ (mm)	ap (mm)	ae (mm)	n (min-1)	Vf (mm/min)	ℓ (mm)	ap (mm)	ae (mm)	n (min-1)	Vf (mm/min)	ℓ (mm)	ap (mm	) ae (mm)	n (min-1)	Vf (mm/min)
Carbon steel		~70	0.2	8~16	4,000	1,200	~70	0.2	10~20	3,180	1,430	~70	0.2	10~18	3,180	1,900
S50C, S55C (C50, C55)	JC8015	120	0.2	8~16	3,000	720	120	0.2	10~20	2,390	860	120	0.2	10~18	2,390	1,150
Below 250HB		160	0.2	8~10	2,600	520	190	0.2	10~12	2,070	620	190	0.2	10~12	2,070	830
Die steel SKD61 SKD11		~70	0.2	8~16	3,600	1,080	~70	0.2	10~20	2,860	1,290	~70	0.2	10~18	2,860	1,720
, (1.2344,	JC8015	120	0.2	8~16	2,600	620	120	0.2	10~20	2,070	750	120	0.2	10~18	2,070	1,000
1.2379) Below 255HB		160	0.2	8~10	2,000	400	190	0.2	10~12	1,590	480	190	0.2	10~12	1,590	640
Mold steel		~70	0.2	8~16	3,200	770	~70	0.2	10~20	2,550	920	~70	0.2	10~18	2,550	1,220
HPM7, PX5, P20	JC8015	120	0.2	8~16	2,400	480	120	0.2	10~20	1,910	570	120	0.2	10~18	1,910	760
(1.2311, P20) 30-36HRC		160	0.2	8~10	1,800	360	190	0.2	10~12	1,430	430	190	0.2	10~12	1,430	570
Mold steel NAK80 HPM1		~70	0.2	8~16	2,600	620	~70	0.2	10~20	2,070	750	~70	0.2	10~18	2,070	1,000
, , P21	JC8015	120	0.2	8~16	2,200	440	120	0.2	10~20	1,750	530	120	0.2	10~18	1,750	700
(1.2311, P21) 38-43HRC		160	0.2	8~10	1,600	320	190	0.2	10~12	1,270	380	190	0.2	10~12	1,270	510
Hardened di tl		~70	0.2	8~16	2,000	400	~70	0.2	10~20	1,600	480	~70	0.2	10~18	1,600	640
e see SKD61, DAC, DHA	JC8015	120	0.2	8~16	1,600	320	120	0.2	10~20	1,280	380	120	0.2	10~18	1,280	510
1.2344, 1.2379) 42-52HRC		160	–	–	–	–	190	–	–	–	–	190	–	–	–	–
Grey & Nodular		~70	0.2	8~16	4,000	1,600	~70	0.2	10~20	3,180	1,910	~70	0.2	10~18	3,180	2,540
cast iron FC, FCD	JC8015	120	0.2	8~16	3,000	900	120	0.2	10~20	2,390	1,080	120	0.2	10~18	2,390	1,430
(GG, GGG) Below 300HB		160	0.2	8~10	2,600	520	190	0.2	10~12	2,070	630	190	0.2	10~12	2,070	830
Stil tl		~70	0.2	8~16	3,600	1,080	~70	0.2	10~20	2,860	1,290	~70	0.2	10~18	2,860	1,720
aness see SUS304	JC8015	120	0.2	8~16	2,600	620	120	0.2	10~20	2,070	750	120	0.2	10~18	2,070	1,000
Below 250HB		160	0.2	8~10	2,000	400	190	0.2	10~12	1,590	480	190	0.2	10~12	1,590	640
		~70	0.2	8~16	1,000	300	~70	0.2	10~20	800	360	~70	0.2	10~18	800	480
Titanium alloy (Ti-6Al-4V)	JC8015	120	0.2	8~16	600	120	120	0.2	10~20	480	150	120	0.2	10~18	480	200
		160	0.2	8~10	600	120	190	0.2	10~12	480	150	190	0.2	10~12	480	200

ℓ: Overhung length, a Axial depth of cut, a : Radial depth of cut, n: Spindle speed, V : Feed speed
