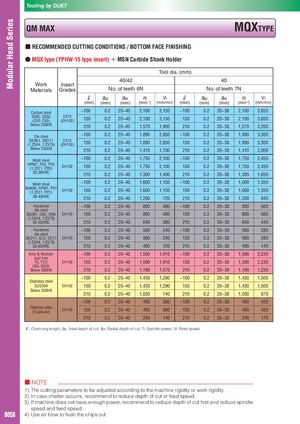

■ RECOMMENDED CUTTING CONDITIONS / BOTTOM FACE FINISHING

MQX type (YPHW-15 type insert) ＋ MSN Carbide Shank Holder

Work	Insert			40/42		Tool di	a.(mm)		40
Materials	Grades		No	. of teeth	6N			No	. of teeth	7N
		ℓ (mm)	ap (mm)	ae (mm)	n (min-1)	Vf (mm/min)	ℓ (mm)	ap (mm)	ae (mm)	n (min-1)	Vf (mm/min)
Carbon steel		~100	0.2	20~40	2,100	3,150	~100	0.2	20~38	2,100	3,650
S50C, S55C (C50, C55)	CX75 (DH102)	150	0.2	20~40	2,100	3,150	150	0.2	20~38	2,100	3,650
Below 250HB		210	0.2	20~40	1,570	1,900	210	0.2	20~38	1,570	2,200
Die steel		~100	0.2	20~40	1,890	2,850	~100	0.2	20~38	1,890	3,300
SKD61, SKD11 (1.2344, 1.2379)	CX75 (DH102)	150	0.2	20~40	1,890	2,850	150	0.2	20~38	1,890	3,300
Below 255HB		210	0.2	20~40	1,410	1,700	210	0.2	20~38	1,410	2,000
Mold steel		~100	0.2	20~40	1,750	2,100	~100	0.2	20~38	1,750	2,450
HPM7, PX5, P20 (1.2311, P20)	DH102	150	0.2	20~40	1,750	2,100	150	0.2	20~38	1,750	2,450
30-36HRC		210	0.2	20~40	1,300	1,400	210	0.2	20~38	1,300	1,650
Mold steel		~100	0.2	20~40	1,600	1,150	~100	0.2	20~38	1,600	1,350
NAK80, HPM1, P21 (1.2311, P21)	DH102	150	0.2	20~40	1,600	1,150	150	0.2	20~38	1,600	1,350
38-43HRC		210	0.2	20~40	1,200	720	210	0.2	20~38	1,200	840
Hardened		~100	0.2	20~40	800	480	~100	0.2	20~38	800	560
die steel SKD61, DAC, DHA	DH102	150	0.2	20~40	800	480	150	0.2	20~38	800	560
(1.2344, 1.2379) 42-52HRC		210	0.2	20~40	640	380	210	0.2	20~38	640	440
Hardened di tl		~100	0.2	20~40	560	240	~100	0.2	20~38	560	280
e see SKD11, SLD, DC11 12344 12379	DH102	150	0.2	20~40	560	240	150	0.2	20~38	560	280
(., .) 55-62HRC		210	0.2	20~40	400	120	210	0.2	20~38	400	140
Grey & Nodular		~100	0.2	20~40	1,590	1,910	~100	0.2	20~38	1,590	2,230
cast iron FC, FCD	DH102	150	0.2	20~40	1,590	1,910	150	0.2	20~38	1,590	2,230
(GG, GGG) Below 300HB		210	0.2	20~40	1,190	1,070	210	0.2	20~38	1,190	1,250
Stainless steel		~100	0.2	20~40	1,430	1,290	~100	0.2	20~38	1,430	1,500
SUS304	DH102	150	0.2	20~40	1,430	1,290	150	0.2	20~38	1,430	1,500
Below 250HB		210	0.2	20~40	1,030	740	210	0.2	20~38	1,030	870
		~100	0.2	20~40	400	360	~100	0.2	20~38	400	420
Titanium alloy (Ti-6Al-4V)	DH102	150	0.2	20~40	400	360	150	0.2	20~38	400	420
		210	0.2	20~40	240	140	210	0.2	20~38	240	170

ℓ: Overhung length, a Axial depth of cut, a : Radial depth of cut, n: Spindle speed, V : Feed speed
