■ RECOMMENDED CUTTING CONDITIONS / BOTTOM FACE FINISHING

MQX type (YPHW-15 type insert) ＋ MSN Carbide Shank Holder

						Tool dia	.(mm)
Work	Insert			30/32/35					32/35
Materials	Grades		No.	of teeth	5N			No	. of teeth	6N
		ℓ (mm)	ap (mm)	ae (mm)	n (min-1)	Vf (mm/min)	ℓ (mm)	ap (mm)	ae (mm)	n (min-1)	Vf (mm/min)
Carbon steel		~100	0.2	16~32	2,650	3,300	~100	0.2	16~30	2,650	3,950
S50C, S55C (C50,C55)	CX75 (DH102)	150	0.2	16~32	2,650	3,300	150	0.2	16~30	2,650	3,950
Below250HB		210	0.2	16~32	2,000	2,000	210	0.2	16~30	2,000	2,400
Die steel		~100	0.2	16~32	2,400	2,700	~100	0.2	16~30	2,400	3,200
SKD61, SKD11 (1.2344, 1.2379)	CX75 (DH102)	150	0.2	16~32	2,400	2,700	150	0.2	16~30	2,400	3,200
Below 255HB		210	0.2	16~32	1,800	1,800	210	0.2	16~30	1,800	2,150
Mold steel		~100	0.2	16~32	2,200	2,200	~100	0.2	16~30	2,200	2,600
HPM7,PX5, P20 (1.2311,P20)	DH102	150	0.2	16~32	2,200	2,200	150	0.2	16~30	2,200	2,600
30-36HRC		210	0.2	16~32	1,650	1,500	210	0.2	16~30	1,650	1,800
Mold steel		~100	0.2	16~32	2,000	1,200	~100	0.2	16~30	2,000	1,450
NAK80, HPM1, P21 (1.2311, P21)	DH102	150	0.2	16~32	2,000	1,200	150	0.2	16~30	2,000	1,450
38-43HRC		210	0.2	16~32	1,500	750	210	0.2	16~30	1,500	900
Hardened		~100	0.2	16~32	1,000	500	~100	0.2	16~30	1,000	600
die steel SKD61, DAC, DHA	DH102	150	0.2	16~32	1,000	500	150	0.2	16~30	1,000	600
(1.2344, 1.2379) 42-52HRC		210	0.2	16~20	800	400	210	0.2	16~20	800	480
Hardened di tl		~100	0.2	16~32	700	250	~100	0.2	16~30	700	300
e see SKD11, SLD, DC11 12344 12379	DH102	150	0.2	16~32	700	250	150	0.2	16~30	700	300
(., .) 55-62HRC		210	0.2	16~20	500	130	210	0.2	16~20	500	160
Grey & Nodular		~100	0.2	16~32	1,990	1,990	~100	0.2	16~30	1,990	2,390
cast iron FC, FCD	DH102	150	0.2	16~32	1,990	1,990	150	0.2	16~30	1,990	2,390
(GG, GGG) Below 300HB		210	0.2	16~32	1,490	1,120	210	0.2	16~30	1,490	1,340
Stainless steel		~100	0.2	16~32	1,790	1,340	~100	0.2	16~30	1,790	1,610
SUS304	DH102	150	0.2	16~32	1,790	1,340	150	0.2	16~30	1,790	1,610
Below 250HB		210	0.2	16~32	1,290	770	210	0.2	16~30	1,290	920
		~100	0.2	16~32	500	380	~100	0.2	16~30	500	460
Titanium alloy (Ti-6Al-4V)	DH102	150	0.2	16~32	500	380	150	0.2	16~30	500	460
		210	0.2	16~20	300	150	210	0.2	16~20	300	180

ℓ: Overhung length, a Axial depth of cut, a : Radial depth of cut, n: Spindle speed, V : Feed speed

p: e f

Общий каталог Dijet 2018 - страница 73

Навигация

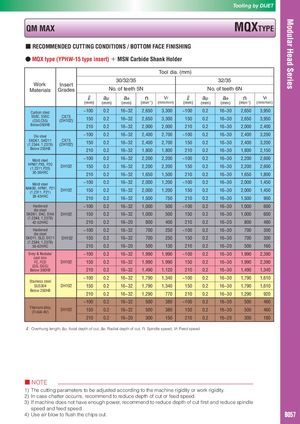

■ RECOMMENDED CUTTING CONDITIONS / BOTTOM FACE FINISHING
