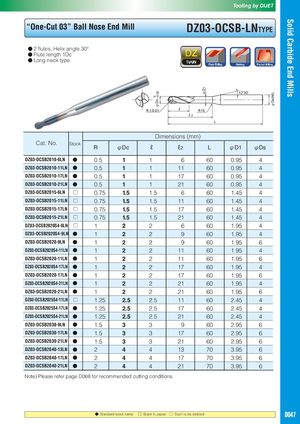

Solid Carbide End Mills φDc－00.02 φD1 φDs(h6) Tooling by DIJET “One-Cut 03” Ball Nose End Mill DZ03-OCSB-LNTYPE ● 2 flutes, Helix angle 30° ● Flute length 1Dc ● Long neck type 12°30' R±0.01 ℓ R15 ℓ2 L Dimensions (mm) Cat. No. Stock R φDc ℓ ℓ2 L φD1 φDs DZ03-OCSB2010-6LN ● 0.5 1 1 6 60 0.95 4 DZ03-OCSB2010-11LN ● 0.5 1 1 11 60 0.95 4 DZ03-OCSB2010-17LN ● 0.5 1 1 17 60 0.95 4 DZ03-OCSB2010-21LN ● 0.5 1 1 21 60 0.95 4 DZ03-OCSB2015-6LN □ 0.75 1.5 1.5 6 60 1.45 4 DZ03-OCSB2015-11LN □ 0.75 1.5 1.5 11 60 1.45 4 DZ03-OCSB2015-17LN □ 0.75 1.5 1.5 17 60 1.45 4 DZ03-OCSB2015-21LN □ 0.75 1.5 1.5 21 60 1.45 4 DZ03-OCSB2020S4-6LN □ 1 2 2 6 60 1.95 4 DZ03-OCSB2020S4-9LN ● 1 2 2 9 60 1.95 4 DZ03-OCSB2020-9LN ● 1 2 2 9 60 1.95 6 DZ03-OCSB2020S4-11LN ● 1 2 2 11 60 1.95 4 DZ03-OCSB2020-11LN ● 1 2 2 11 60 1.95 6 DZ03-OCSB2020S4-17LN ● 1 2 2 17 60 1.95 4 DZ03-OCSB2020-17LN ● 1 2 2 17 60 1.95 6 DZ03-OCSB2020S4-21LN ● 1 2 2 21 60 1.95 4 DZ03-OCSB2020-21LN ● 1 2 2 21 60 1.95 6 DZ03-OCSB2025S4-11LN □ 1.25 2.5 2.5 11 60 2.45 4 DZ03-OCSB2025S4-17LN ● 1.25 2.5 2.5 17 60 2.45 4 DZ03-OCSB2025S4-21LN ● 1.25 2.5 2.5 21 60 2.45 4 DZ03-OCSB2030-9LN ● 1.5 3 3 9 60 2.95 6 DZ03-OCSB2030-17LN ● 1.5 3 3 17 60 2.95 6 DZ03-OCSB2030-21LN ● 1.5 3 3 21 60 2.95 6 DZ03-OCSB2040-13LN ● 2 4 4 13 70 3.95 6 DZ03-OCSB2040-17LN ● 2 4 4 17 70 3.95 6 DZ03-OCSB2040-21LN ● 2 4 4 21 70 3.95 6 Note) Please refer page D068 for recommended cutting conditions. ●: Standard stock items □: Stock in Japan ○: Soon to be deleted D047
