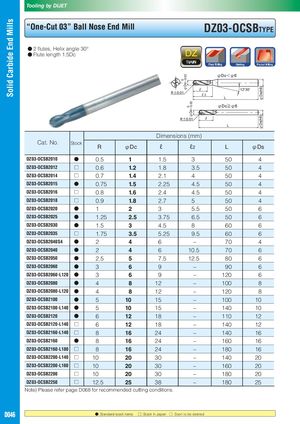

Solid Carbide End Mills 0 φDc－0.02 0 φDc－0.02 φDs(h6)φDs(h6) Tooling by DIJET “One-Cut 03” Ball Nose End Mill DZ03-OCSBTYPE ● 2 flutes, Helix angle 30° ● Flute length 1.5Dc φDc＜φ6 ℓ 12°30' R±0.01 ℓ2 L φDc≧φ6 R±0.01 ℓ L Dimensions (mm) Cat. No. Stock R φDc ℓ ℓ2 L φDs DZ03-OCSB2010 ● 0.5 1 1.5 3 50 4 DZ03-OCSB2012 □ 0.6 1.2 1.8 3.5 50 4 DZ03-OCSB2014 □ 0.7 1.4 2.1 4 50 4 DZ03-OCSB2015 ● 0.75 1.5 2.25 4.5 50 4 DZ03-OCSB2016 □ 0.8 1.6 2.4 4.5 50 4 DZ03-OCSB2018 □ 0.9 1.8 2.7 5 50 4 DZ03-OCSB2020 ● 1 2 3 5.5 50 6 DZ03-OCSB2025 ● 1.25 2.5 3.75 6.5 50 6 DZ03-OCSB2030 ● 1.5 3 4.5 8 60 6 DZ03-OCSB2035 □ 1.75 3.5 5.25 9.5 60 6 DZ03-OCSB2040S4 ● 2 4 6 – 70 4 DZ03-OCSB2040 ● 2 4 6 10.5 70 6 DZ03-OCSB2050 ● 2.5 5 7.5 12.5 80 6 DZ03-OCSB2060 ● 3 6 9 – 90 6 DZ03-OCSB2060-L120 ● 3 6 9 – 120 6 DZ03-OCSB2080 ● 4 8 12 – 100 8 DZ03-OCSB2080-L120 ● 4 8 12 – 120 8 DZ03-OCSB2100 ● 5 10 15 – 100 10 DZ03-OCSB2100-L140 ● 5 10 15 – 140 10 DZ03-OCSB2120 ● 6 12 18 – 110 12 DZ03-OCSB2120-L140 □ 6 12 18 – 140 12 DZ03-OCSB2160-L140 □ 8 16 24 – 140 16 DZ03-OCSB2160 ● 8 16 24 – 160 16 DZ03-OCSB2160-L180 □ 8 16 24 – 180 16 DZ03-OCSB2200-L140 □ 10 20 30 – 140 20 DZ03-OCSB2200-L160 □ 10 20 30 – 160 20 DZ03-OCSB2200 □ 10 20 30 – 180 20 DZ03-OCSB2250 □ 12.5 25 38 – 180 25 Note) Please refer page D068 for recommended cutting conditions. D046 ●: Standard stock items □: Stock in Japan ○: Soon to be deleted
