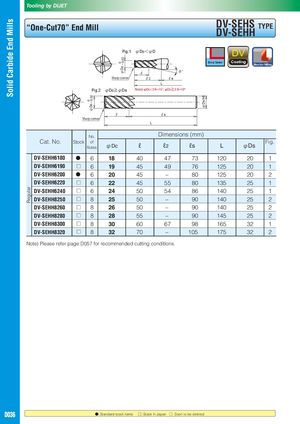

Tooling by DIJET Solid Carbide End Mills “One-Cut70” End Mill DV-SEHS TYPE DV-SEHH Fig.1 φDc＜φD φDc －0.02 0 ℓ θ° Sharp corner ℓ2 ℓs L Fig.2 φDc≧φDs φDc－0.02 Note) φDc<3 θ=15°, φDc≧3 θ=10° φDs h6 0 ℓ ℓs Sharp corner L No. Dimensions (mm) Cat. No. Stock of Fig. flutes φDc ℓ ℓ2 ℓs L φDs DV-SEHH6180 ● 6 18 40 47 73 120 20 1 DV-SEHH6190 □ 6 19 45 49 76 125 20 1 DV-SEHH6200 ● 6 20 45 – 80 125 20 2 DV-SEHH6220 □ 6 22 45 55 80 135 25 1 Regular DV-SEHH6240 □ 6 24 50 54 86 140 25 1 DV-SEHH8250 □ 8 25 50 – 90 140 25 2 DV-SEHH8260 □ 8 26 50 – 90 140 25 2 DV-SEHH8280 □ 8 28 55 – 90 145 25 2 DV-SEHH8300 □ 8 30 60 67 98 165 32 1 DV-SEHH8320 □ 8 32 70 – 105 175 32 2 Note) Please refer page D057 for recommended cutting conditions. D036 ●: Standard stock items □: Stock in Japan ○: Soon to be deleted
