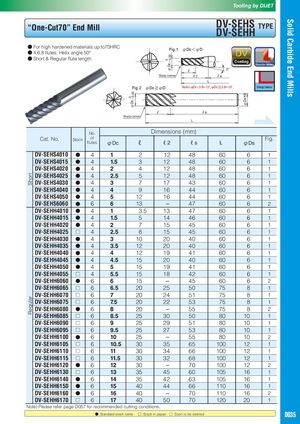

Общий каталог Dijet 2018 - страница 517

ShortRegular φDc－00.02 φDc－0.02 0 φDs h6 Solid Carbide End Mills Tooling by DIJET “One-Cut70” End Mill DV-SEHS DV-SEHH TYPE ● For high hardened materials up to70HRC● 4,6,8 flutes, Helix angle 50° Fig.1 φDc＜φD DDVV ● Short & Regular flute length CCooaattiinngg SShhoouullddeerrMilling ℓ θ° Sharp corner ℓ2 ℓs L Fig.2 φDc≧φD Note) φDc<3 θ=15°, φDc≧3 θ=10° ner ℓ ℓs Sharp corner L No. Dimensions (mm) Cat. No. Stock offlutesφDc ℓ ℓ2 ℓs Fig.LφDs DV-SEHS4010 ● 4 1 2 12 48 60 6 1 DV-SEHS4015 ● 4 1.5 3 12 48 60 6 1 DV-SEHS4020 ● 4 2 4 12 48 60 6 1 DV-SEHS4025 ● 4 2.5 5 12 48 60 6 1 DV-SEHS4030 ● 4 3 7 17 43 60 6 1 DV-SEHS4040 ● 4 4 9 16 44 60 6 1 DV-SEHS4050 ● 4 5 12 16 44 60 6 1 DV-SEHS6060 ● 6 6 13 – 47 60 6 2 DV-SEHH4010 ● 4 1 3.5 13 47 60 6 1 DV-SEHH4015 ● 4 1.5 5 14 46 60 6 1 DV-SEHH4020 ● 4 2 7 15 45 60 6 1 DV-SEHH4025 □ 4 2.5 8 15 45 60 6 1 DV-SEHH4030 ● 4 3 10 20 40 60 6 1 DV-SEHH4035 ● 4 3.5 12 20 40 60 6 1 DV-SEHH4040 ● 4 4 12 19 41 60 6 1 DV-SEHH4045 ● 4 4.5 15 20 40 60 6 1 DV-SEHH4050 ● 4 5 15 19 41 60 6 1 DV-SEHH4055 □ 4 5.5 15 18 42 60 6 1 DV-SEHH6060 ● 6 6 15 – 45 60 6 2 DV-SEHH6065 □ 6 6.5 20 25 50 75 8 1 DV-SEHH6070 □ 6 7 20 24 51 75 8 1 DV-SEHH6075 □ 6 7.5 20 22 53 75 8 1 DV-SEHH6080 ● 6 8 20 – 55 75 8 2 DV-SEHH6085 □ 6 8.5 25 30 50 80 10 1 DV-SEHH6090 □ 6 9 25 29 51 80 10 1 DV-SEHH6095 □ 6 9.5 25 27 53 80 10 1 DV-SEHH6100 ● 6 10 25 – 55 80 10 2 DV-SEHH6105 □ 6 10.5 30 35 65 100 12 1 DV-SEHH6110 □ 6 11 30 34 66 100 12 1 DV-SEHH6115 □ 6 11.5 30 32 68 100 12 1 DV-SEHH6120 ● 6 12 30 – 70 100 12 2 DV-SEHH6130 □ 6 13 35 45 60 105 16 1 DV-SEHH6140 ● 6 14 35 42 63 105 16 1 DV-SEHH6150 ● 6 15 40 44 66 110 16 1 DV-SEHH6160 ● 6 16 40 – 70 110 16 2 DV-SEHH6170 □ 6 17 40 50 70 120 20 1 Note) Please refer page D057 for recommended cutting conditions. ●: Standard stock items □: Stock in Japan ○: Soon to be deleted D035
