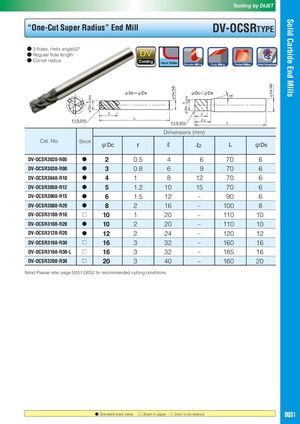

Solid Carbide End Mills 0 φDc－0.015 φDs（h6） φDc－00.015 φDs（h6） Tooling by DIJET “One-Cut Super Radius” End Mill DV-OCSRTYPE ● 3 flutes, Helix angle50° ● Regular flute length ● Corner radius φDc＝φDs φDc＜φDs 15° ℓ ℓ r±0.015 L r±0.015 ℓ2 L Dimensions (mm) Cat. No. Stock φDc r ℓ ℓ2 L φDs DV-OCSR3020-R05 ● 2 0.5 4 6 70 6 DV-OCSR3030-R08 ● 3 0.8 6 9 70 6 DV-OCSR3040-R10 ● 4 1 8 12 70 6 DV-OCSR3050-R12 ● 5 1.2 10 15 70 6 DV-OCSR3060-R15 ● 6 1.5 12 − 90 6 DV-OCSR3080-R20 ● 8 2 16 − 100 8 DV-OCSR3100-R10 □ 10 1 20 − 110 10 DV-OCSR3100-R20 ● 10 2 20 − 110 10 DV-OCSR3120-R20 ● 12 2 24 − 120 12 DV-OCSR3160-R30 □ 16 3 32 − 160 16 DV-OCSR3160-R30-L □ 16 3 32 − 185 16 DV-OCSR3200-R30 □ 20 3 40 − 160 20 Note) Please refer page D051-D052 for recommended cutting conditions. ●: Standard stock items □: Stock in Japan ○: Soon to be deleted D031
