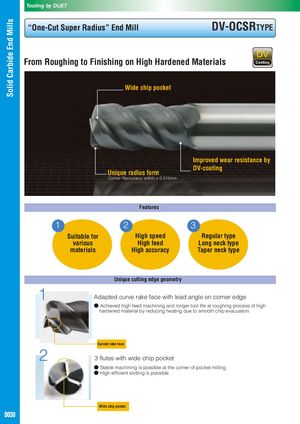

Solid Carbide End Mills Tooling by DIJET “One-Cut Super Radius” End Mill DV-OCSRTYPE From Roughing to Finishing on High Hardened Materials Wide chip pocket Improved wear resistance by DV-coating Unique radius form Corner Raccuracy: within ± 0.015mm Features 1 2 3 Suitable for High speed Regular type various High feed Long neck type materials High accuracy Taper neck type Unique cutting edge geometry 1 Adapted curve rake face with lead angle on corner edge ● Achieved high feed machining and longer tool life at roughing process of high hardened material by reducing heating due to smooth chip evacuation. Curved rake face 2 3 flutes with wide chip pocket ● Stable machining is possible at the corner of pocket milling ● High efficient slotting is possible. Wide chip pocket D030
