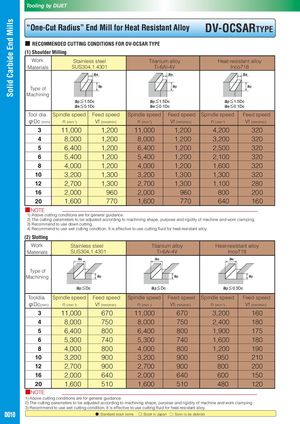

Solid Carbide End Mills Tooling by DIJET “One-Cut Radius” End Mill for Heat Resistant Alloy DV-OCSARTYPE ■ RECOMMENDED CUTTING CONDITIONS FOR DV-OCSAR TYPE (1) Shoulder Milling Work Stainless steel Titanium alloy Heat-resistant alloy Materials SUS304,1.4301 Ti-6Al-4V Inco718 ae ae ae Type of ap ap ap Macchhiinning ap≦1.5Dc ap≦1.5Dc ap≦1.5Dc ae≦0.1Dc ae≦0.1Dc ae≦0.1Dc Tool dia. Spindle speed Feed speed Spindle speed Feed speed Spindle speed Feed speed φDc (mm) n (min-1) Vf (mm/min) n (min-1) Vf (mm/min) n (min-1) Vf (mm/min) 3 11,000 1,200 11,000 1,200 4,200 320 4 8,000 1,200 8,000 1,200 3,200 320 5 6,400 1,200 6,400 1,200 2,500 320 6 5,400 1,200 5,400 1,200 2,100 320 8 4,000 1,200 4,000 1,200 1,600 320 10 3,200 1,300 3,200 1,300 1,300 320 12 2,700 1,300 2,700 1,300 1,100 280 16 2,000 960 2,000 960 800 200 20 1,600 770 1,600 770 640 160 ■NOTE 1) Above cutting conditions are for general guidance. 2) The cutting parameters to be adjusted according to machining shape, purpose and rigidity of machine and work clamping 3) Recommend to use down cutting. 4) Recommend to use wet cutting condition. It is effective to use cutting fluid for heat-resistant alloy. (2) Slotting Work Stainless steel Titanium alloy Heat-resistant alloy Materiaallss SUS304,1.4301 Ti-6Al-4V Inco718 ae ae ae Type of Macchhininiinng ap ap ap ap≦Dc ap≦Dc ap≦0.3Dc Tooldia. Spindle speed Feed speed Spindle speed Feed speed Spindle speed Feed speed φDc(mm) n (min-1) Vf (mm/min) n (min-1) Vf( mm/min) n (min-1) Vf (mm/min) 3 11,000 670 11,000 670 3,200 160 4 8,000 750 8,000 750 2,400 180 5 6,400 800 6,400 800 1,900 175 6 5,300 740 5,300 740 1,600 180 8 4,000 800 4,000 800 1,200 190 10 3,200 900 3,200 900 950 210 12 2,700 900 2,700 900 800 200 16 2,000 640 2,000 640 600 150 20 1,600 510 1,600 510 480 120 ■NOTE 1) Above cutting conditions are for general guidance. 2) The cutting parameters to be adjusted according to machining shape, purpose and rigidity of machine and work clamping 3) Recommend to use wet cutting condition. It is effective to use cutting fluid for heat-resistant alloy. D010 ●: Standard stock items □: Stock in Japan ○: Soon to be deleted
