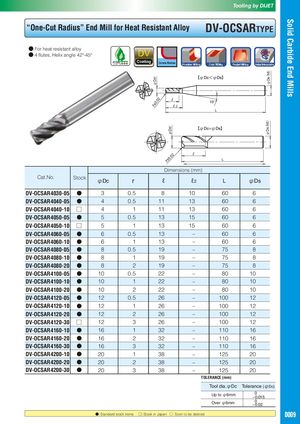

Solid Carbide End Mills φDc※r±0.02 φDc※r±0.02 φDs（h5）φDs（h5） Tooling by DIJET “One-Cut Radius” End Mill for Heat Resistant Alloy DV-OCSARTYPE ● For heat resistant alloy ● 4 flutes, Helix angle 42°-45° 【φDc＜φDs】 ℓ 10° ℓ2 L 【φDc=φDs】 ℓ L Dimensions (mm) Cat.No. Stock φDc r ℓ ℓ2 L φDs DV-OCSAR4030-05 ● 3 0.5 8 10 60 6 DV-OCSAR4040-05 ● 4 0.5 11 13 60 6 DV-OCSAR4040-10 □ 4 1 11 13 60 6 DV-OCSAR4050-05 ● 5 0.5 13 15 60 6 DV-OCSAR4050-10 □ 5 1 13 15 60 6 DV-OCSAR4060-05 ● 6 0.5 13 − 60 6 DV-OCSAR4060-10 ● 6 1 13 − 60 6 DV-OCSAR4080-05 ● 8 0.5 19 − 75 8 DV-OCSAR4080-10 ● 8 1 19 − 75 8 DV-OCSAR4080-20 ● 8 2 19 − 75 8 DV-OCSAR4100-05 ● 10 0.5 22 − 80 10 DV-OCSAR4100-10 ● 10 1 22 − 80 10 DV-OCSAR4100-20 ● 10 2 22 − 80 10 DV-OCSAR4120-05 ● 12 0.5 26 − 100 12 DV-OCSAR4120-10 ● 12 1 26 − 100 12 DV-OCSAR4120-20 ● 12 2 26 − 100 12 DV-OCSAR4120-30 □ 12 3 26 − 100 12 DV-OCSAR4160-10 ● 16 1 32 − 110 16 DV-OCSAR4160-20 ● 16 2 32 − 110 16 DV-OCSAR4160-30 ● 16 3 32 − 110 16 DV-OCSAR4200-10 ● 20 1 38 − 125 20 DV-OCSAR4200-20 ● 20 2 38 − 125 20 DV-OCSAR4200-30 ● 20 3 38 − 125 20 TOLERANCE (mm) Tool dia.φDc Tolerance (φDc) Up to φ6mm 0−0.015 Over φ6mm 0−0.02 ●: Standard stock items □: Stock in Japan ○: Soon to be deleted D009
