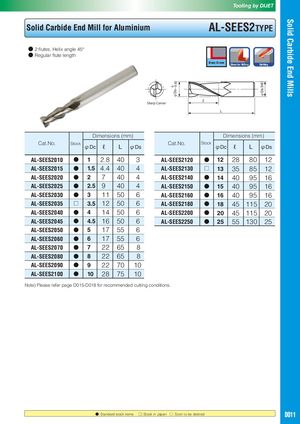

Solid Carbide End Mills φDc－00.02 φDs（h6） Tooling by DIJET Solid Carbide End Mill for Aluminium AL-SEES2TYPE ● 2 flutes, Helix angle 45° ● Regular flute length Sharp Corner ℓ L Dimensions (mm) Dimensions (mm) Cat.No. Stock φDc ℓ L φDs Cat.No. Stock φDc ℓ L φDs AL-SEES2010 ● 1 2.8 40 3 AL-SEES2120 ● 12 28 80 12 AL-SEES2015 ● 1.5 4.4 40 4 AL-SEES2130 □ 13 35 85 12 AL-SEES2020 ● 2 7 40 4 AL-SEES2140 ● 14 40 95 16 AL-SEES2025 ● 2.5 9 40 4 AL-SEES2150 ● 15 40 95 16 AL-SEES2030 ● 3 11 50 6 AL-SEES2160 ● 16 40 95 16 AL-SEES2035 □ 3.5 12 50 6 AL-SEES2180 ● 18 45 115 20 AL-SEES2040 ● 4 14 50 6 AL-SEES2200 ● 20 45 115 20 AL-SEES2045 ● 4.5 16 50 6 AL-SEES2250 ● 25 55 130 25 AL-SEES2050 ● 5 17 55 6 AL-SEES2060 ● 6 17 55 6 AL-SEES2070 ● 7 22 65 8 AL-SEES2080 ● 8 22 65 8 AL-SEES2090 ● 9 22 70 10 AL-SEES2100 ● 10 28 75 10 Note) Please refer page D015-D018 for recommended cutting conditions. ●: Standard stock items □: Stock in Japan ○: Soon to be deleted D011
