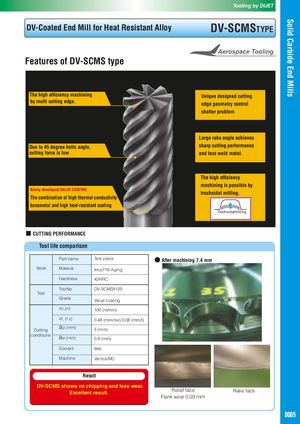

Solid Carbide End Mills Tooling by DIJET DV-Coated End Mill for Heat Resistant Alloy DV-SCMSTYPE Features of DV-SCMS type The high efficiency machining Unique designed cutting by multi cutting edge. edge geometry control chatter problem Large rake angle achieves Due to 45 degree helix angle, sharp cutting performance cutting force is low and less weld metal. The high efficiency machining is possible by Newly developed VALUE COATING trochoidal milling. The combination of high thermal conductivity basemetal and high heat-resistant coating Trochoidalmilling ■ CUTTING PERFORMANCE Tool life comparison Part name Test piece ● After machining 7.4 mm Work Material Inco718 Aging Hardness 42HRC ToolNo. DV-SCMS8120 Tool Grade Value coating Vc,(n) 100 (m/min) Vf, (f z) 0.48 (mm/rev),0.06 (mm/t) Cutting ap (mm) 5 (mm) conditions ae (mm) 0.8 (mm) Coolant Wet Machine VerticalMC Result DV-SCMS shows no chipping and less wear. Excellent result. Relief face Rake face Flank wear 0.09 mm D005
