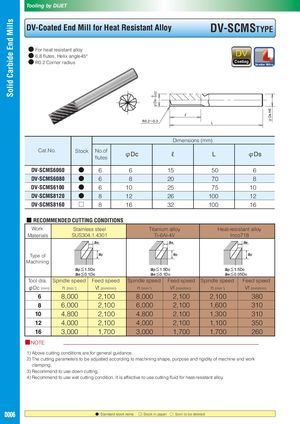

Solid Carbide End Mills φDc-00.02 φDs h6 Tooling by DIJET DV-Coated End Mill for Heat Resistant Alloy DV-SCMSTYPE ● For heat resistant alloy ● 6,8 flutes, Helix angle45° ● R0.2 Corner radius ℓ R0.2~0.3 L Dimensions (mm) Cat.No. Stock No.offlutes φDc ℓ L φDs DV-SCMS6060 ● 6 6 15 50 6 DV-SCMS6080 ● 6 8 20 70 8 DV-SCMS6100 ● 6 10 25 75 10 DV-SCMS8120 ● 8 12 26 100 12 DV-SCMS8160 □ 8 16 32 100 16 ■ RECOMMENDED CUTTING CONDITIONS Work Stainless steel Titanium alloy Heat-resistant alloy Materials SUS304,1.4301 Ti-6Al-4V Inco718 ae ae ae Type of ap ap ap Machining ap≦1.5Dc ap≦1.5Dc ap≦1.5Dc ae≦0.1Dc ae≦0.1Dc ae≦0.05Dc Tool dia. Spindle speed Feed speed Spindle speed Feed speed Spindle speed Feed speed φDc (mm) n (min-1) Vf (mm/min) n (min-1) Vf (mm/min) n (min-1) Vf (mm/min) 6 8,000 2,100 8,000 2,100 2,100 380 8 6,000 2,100 6,000 2,100 1,600 310 10 4,800 2,100 4,800 2,100 1,300 310 12 4,000 2,100 4,000 2,100 1,100 350 16 3,000 1,700 3,000 1,700 1,700 260 ■NOTE 1) Above cutting conditions are for general guidance. 2) The cutting parameters to be adjusted according to machining shape, purpose and rigidity of machine and work clamping. 3) Recommend to use down cutting. 4) Recommend to use wet cutting condition. It is effective to use cutting fluid for heat-resistant alloy. D006 ●: Standard stock items □: Stock in Japan ○: Soon to be deleted
