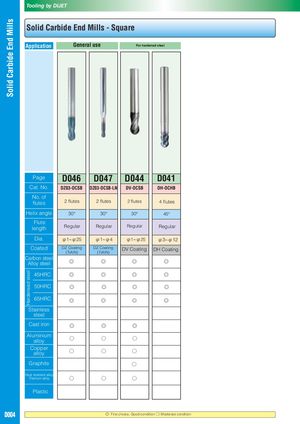

Solid Carbide End Mills HHaarrddeenneeaadd sstteeeell Tooling by DIJET Solid Carbide End Mills - Square Application General use For hardened steel Page D046 D047 D044 D041 Cat. No. DZ03-OCSB DZ03-OCSB-LN DV-OCSB DH-OCHB No. of flutes 2 flutes 2 flutes 2 flutes 4 flutes Helix angle 30° 30° 30° 45° Flute length Regular Regular Regular Regular Dia. φ1~φ25 φ1~φ4 φ1~φ25 φ3~φ12 Coated DZ Coating DZ Coating DV Coating DH Coating (TiAIN) (TiAIN) Carbon steel Alloy steel ◎ ◎ ◎ ◎ 45HRC ◎ ◎ ◎ ◎ 50HRC ◎ ◎ ◎ ◎ 65HRC ◎ ◎ ◎ ◎ Stainless steel Cast iron ◎ ◎ ◎ Aluminium alloy ○ ○ ○ Copper alloy ○ ○ ○ Graphite ○ Heat resistant alloy Titanium alloy ○ ○ ○ Plastic D004 ◎: First choice, Good condition ○: Moderate condition
