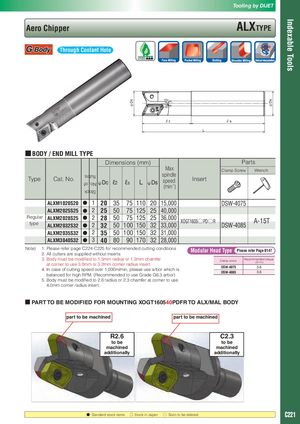

Tooling by DIJET Indexable Tools Aero Chipper ALXTYPE Through Coolant Hole φDc φDs ℓ2 ℓs L ■ BODY / END MILL TYPE Dimensions (mm) Parts Max. Clamp Screw Wrench flutes spindle Type Cat. No. Insert No. of ϕDc ℓ2 ℓs L ϕDs speed Stock (min-1) ALXM1020S20 ● 1 20 35 75 110 20 15,000 DSW-4075 ALXM2025S25 ● 2 25 50 75 125 25 40,000 Regular ALXM2028S25 ● 2 28 50 75 125 25 36,000 XOGT1605○PD○R type A-15T ALXM2032S32 ● 2 32 50 100 150 32 33,000 DSW-4085 ALXM2035S32 ● 2 35 50 100 150 32 31,000 ALXM3040S32 ● 3 40 80 90 170 32 28,000 Note) 1. Please refer page C224-C225 for recommended cutting conditions 2. All cutters are supplied without inserts Modular Head Type Please refer Page B147 3. Body must be modified to 1.5mm radius or 1.2mm chamfer Clamp screw Recommended torque (N・m) at corner to use 3.0mm or 3.2mm corner radius insert. DSW-4075 3.6 4. In case of cutting speed over 1,000m/min, please use arbor which is DSW-4085 3.6 balanced for high RPM. (Recommended to use Grade G6.3 arbor) 5. Body must be modified to 2.6 radius or 2.3 chamfer at corner to use 4.0mm corner radius insert. ■ PART TO BE MODIFIED FOR MOunTInG XOGT160540PDFR TO ALX/MAL BODy part to be machined part to be machined R2.6 C2.3 to be to be machined machined additionally additionally ●: Standard stock items □: Stock in Japan ○: Soon to be deleted C221
